Heated equipment

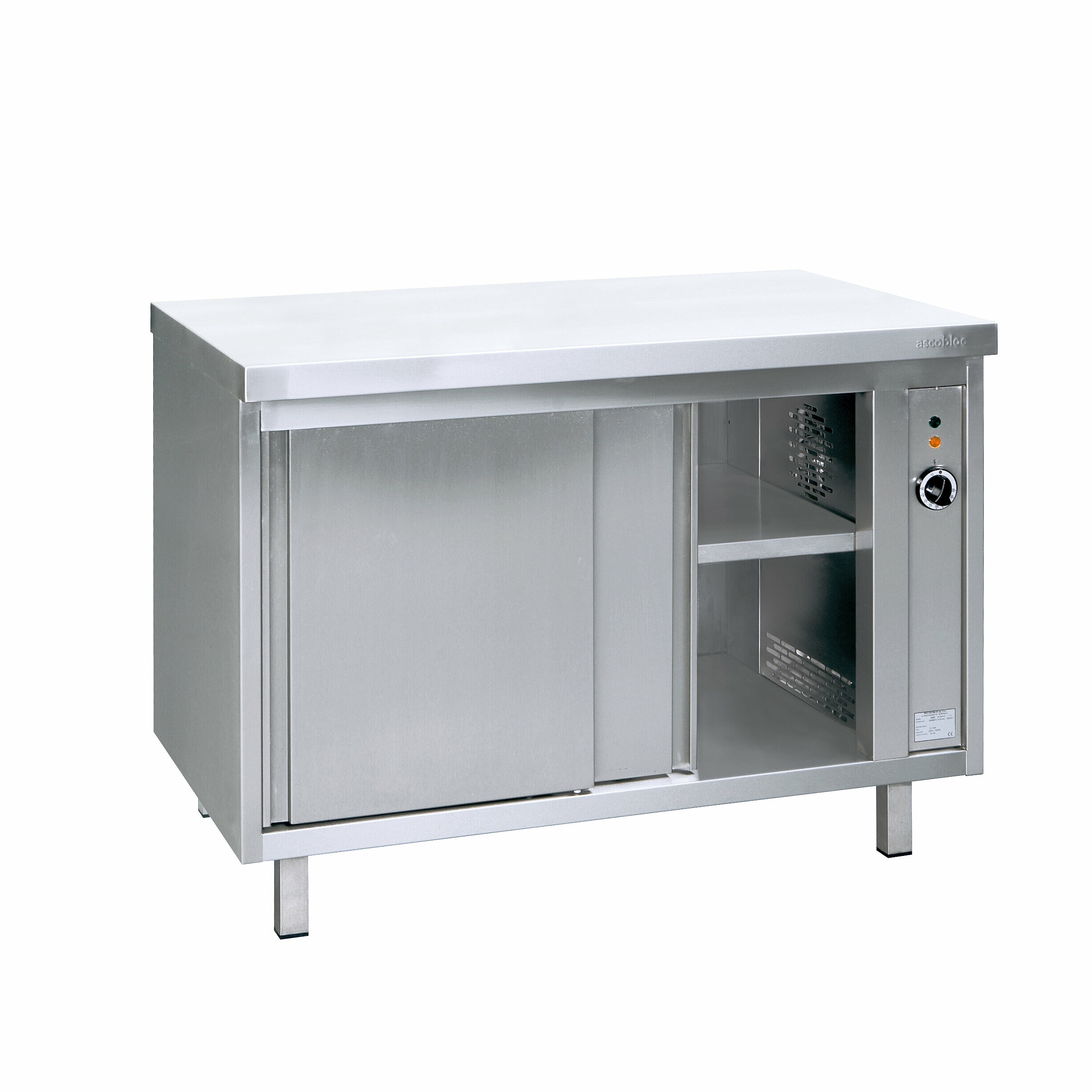

Dish heating cabinets
- Entirely made of matt ground CNS – 1.4301, grain 320
- Dish-warming cabinets in self-supporting, sturdy construction
- Cabinet body closed and heat-insulated, front with sliding doors, hinged doors or drawers, each heat-insulated
- Installation optionally stationary on feet made of square tubing (height adjustable +/- 15 mm), on castors or on a customer-supplied base
- Substructures optionally in standard design (HS) or H1 design according to DIN 18865-Part 9
- Interior with height-adjustable and perforated intermediate shelf or perforated box drawers
- Edged sliding-door guide, secured against derailing, for noise damping with ball-bearing rollers and soft end stop
- Double-walled, easy-to-clean hinged doors with integrated horizontal handles and magnetic closures, end stop optionally left or right, mounted on sturdy CNS hinges
- Drawer unit optionally available with 2, 3 or 4 drawers, drawers optionally with soft-closing features
- Heating element with centrifugal fan/regulator on right-hand side of cabinet
- From 1600 mm unit length, additional heating coil on the left – not for variant with drawer unit
- Thermostatically adjustable from 30 °C to 85 °C
- Ground clearance 150 mm/200 mm with top edge of cabinet 800 mm/850 mm
- Option:
- Custom cabinet height
- Doors and drawers with locking system
Hot service cabinets
- Entirely made of matt ground CNS – 1.4301, grain 320
- Tabletop material thickness 2.0 mm, panel thickness/dropped edge 50 mm, sound-absorbing underlay, reinforced with profiles
- Basins for keeping food warm are designed to hold GN 1/1 containers 200 mm deep
- Basin seamlessly deep-drawn and welded without joints into the tabletop
- Heating for each basin via external 750 watt tubular heating element
- Designed for wet operation
- Drainage via embossed ¾" outlet and ball valve with manual filling and open outlet or with water inlet and outlet per basin
- Self-supporting, sturdy construction, closed on three sides in standard version (HS) or H1 version, open at the front or with sliding doors for version with heating cabinet, insulated version
- Basin and control panel on top
- Electrical installation compartment – bottom right
- Plumbing installation compartment – bottom left
- Installation optionally stationary on feet made of square tubing (height adjustable +/- 15 mm) or on a customer-supplied base
- Ground clearance 150 mm/200 mm at working height 850 mm/900 mm, feet height-adjustable +/- 15 mm
- Option:
- Increase heating capacity
- Electronic water level control with solenoid valve
- Substructure as heating cabinet with sliding or hinged doors
- Doors with locking systems
Heat bridge food warmers
- Entirely made of matt ground CNS – 1.4301, grain 320
- 1 or 2-level version
- Heat bridge/s are provided with 80 mm dropped edges on all sides
- Heat bridge/s with uprights made of square tubing 30x30 mm welded at the corners
- Heating by infrared radiators with power controller
- Standard heights 350 / 700 mm
- Electrical connection: 1 NPE AC 230 V 50 Hz
- Option:
- Custom shelf height
- Lighting of the work surface underneath
