Counter refrigeration
Refrigerated and freezing counters from ascobloc are available in various executions, i.e. as ready to plug-in appliances or for connection to
remote cooling units. The counters may have 1 to 4 GN-sized sections and may be equipped with hinged doors or drawer blocks.

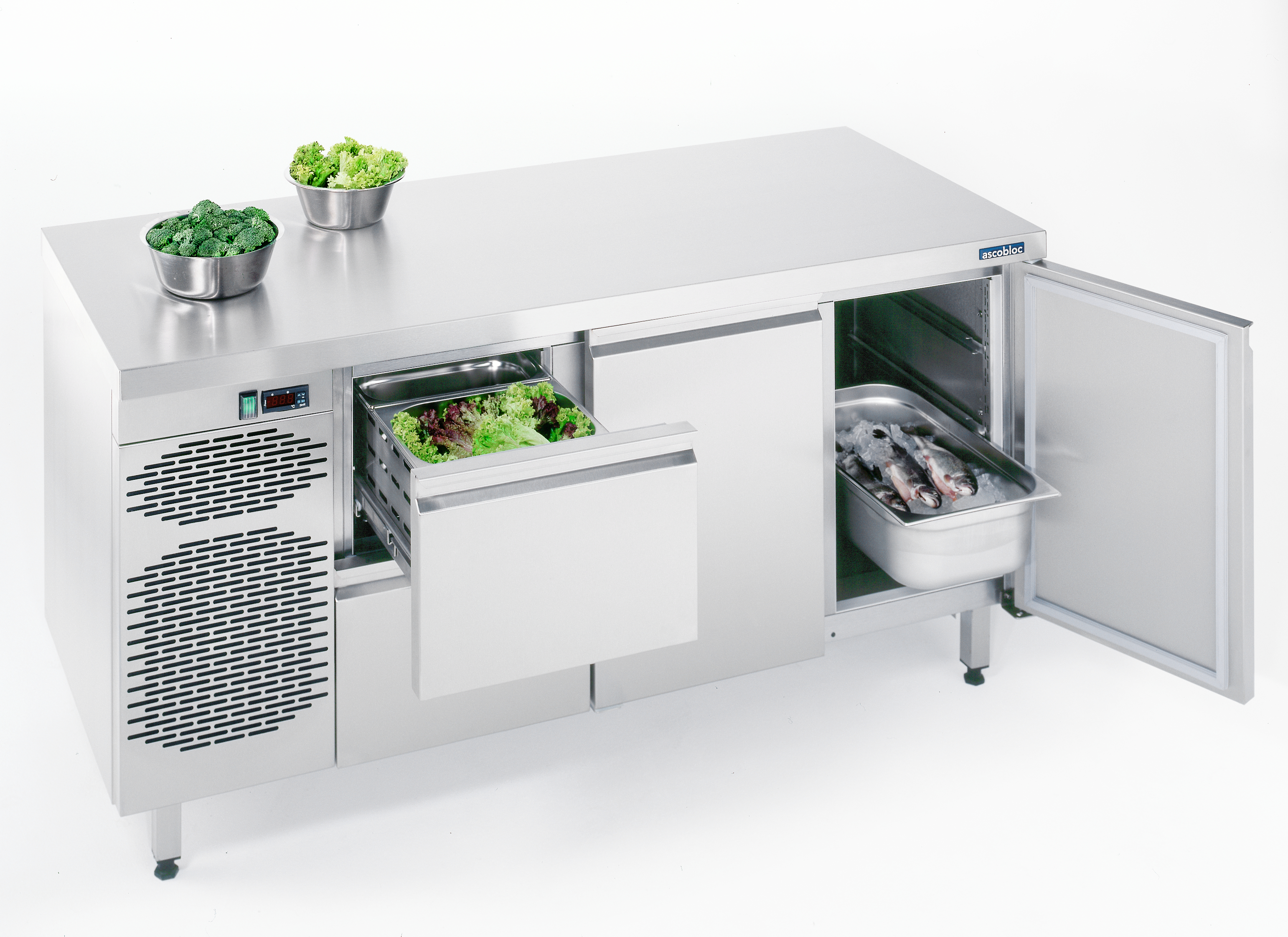

Refrigerated and freezing counters with side machine compartment
- Tested as per (EU) 2015/1094
- Cabinet body completely made of stainless steel AISI 304
- Refrigeration range -2 °C to +12 °C; Freezing range -18°C (PL)
- Pressure-foamed with PU insulation foam, Insulation thickness 60mm
- Doors/panels with magnetic frame seal
- Machine compartment with cooling unit on the left side, Option: Position on the right side
- Foot height 150 mm (or as required for the project)
- Options: With worktop stainless steel 50 mm – material thickness 1.0 mm, rear with 50-mm upstand / front with drip edge or front and rear with drip edge
- Option: Refrigerated counters with hinged doors with insulation glass, stainless steel frame and interior lighting
- Standard execution - Built-in cooling with hinged doors, Machine compartment left side
- Standard execution - Remote cooling with hinged doors, Technical compartment left side
- Option: Drawer blocks 2x1/2 // 3x1/3 // 1/3+2/3

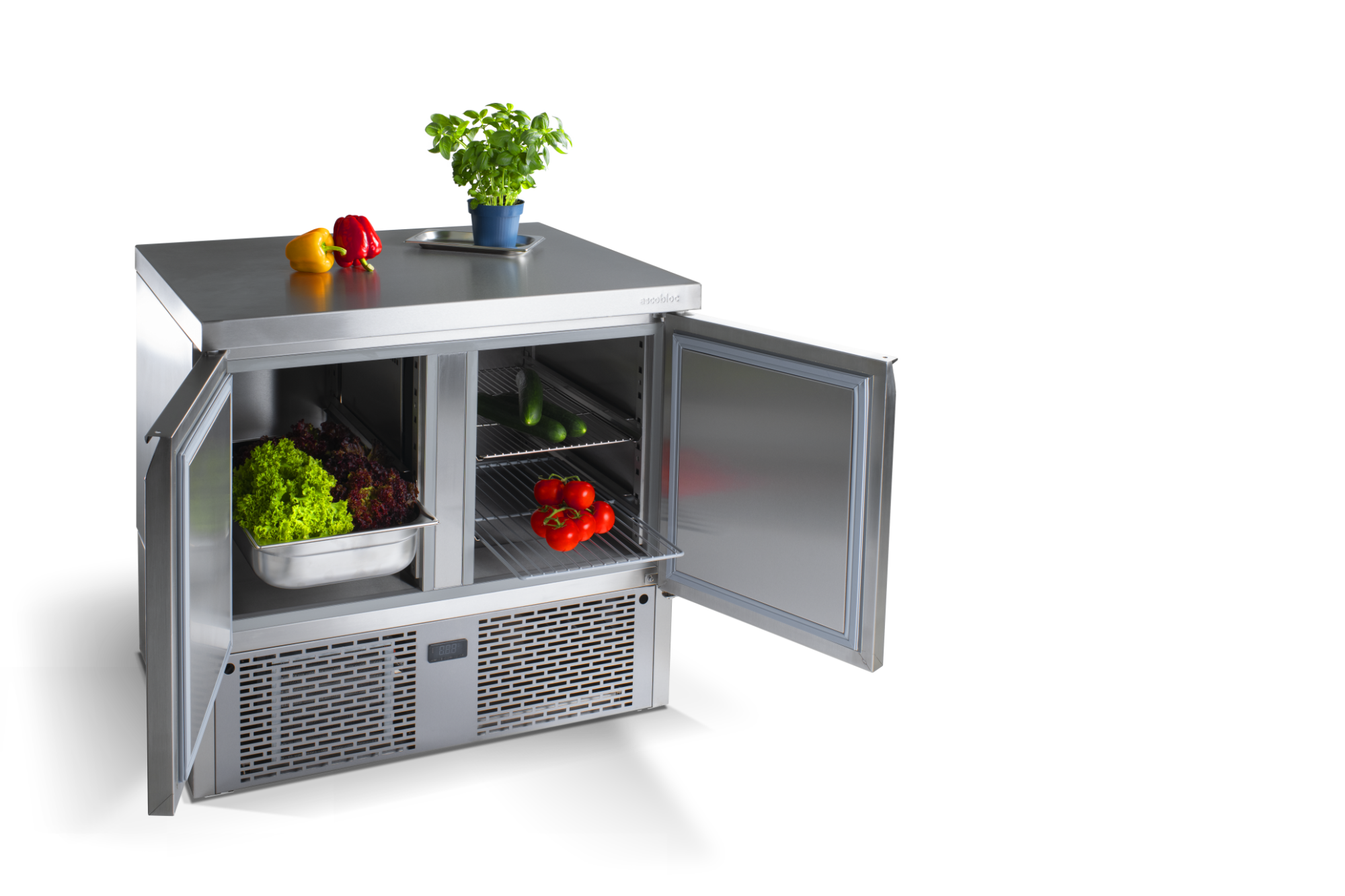

Refrigerated and freezing counters with base cooling unit
- Tested as per (EU) 2015/1094
- Refrigeration range +2 °C to +16 °C; Freezing rang -18 °C
- Cabinet body completely made of stainless steel AISI 304
- Pressure-foamed with PU insulation foam, Insulation thickness 60mm
- Doors/panels with magnetic frame seal
- Machine compartment in the base (base cooling unit)
- Options: with worktop stainless steel 50 mm – material thickness 1.0 mm, rear with 50-mm upstand / front with drip edge or front and rear with drip edge
- Standard execution - Built-in cooling with hinged doors
- Option: Drawer blocks 2 x 1/2 // 1 x 1

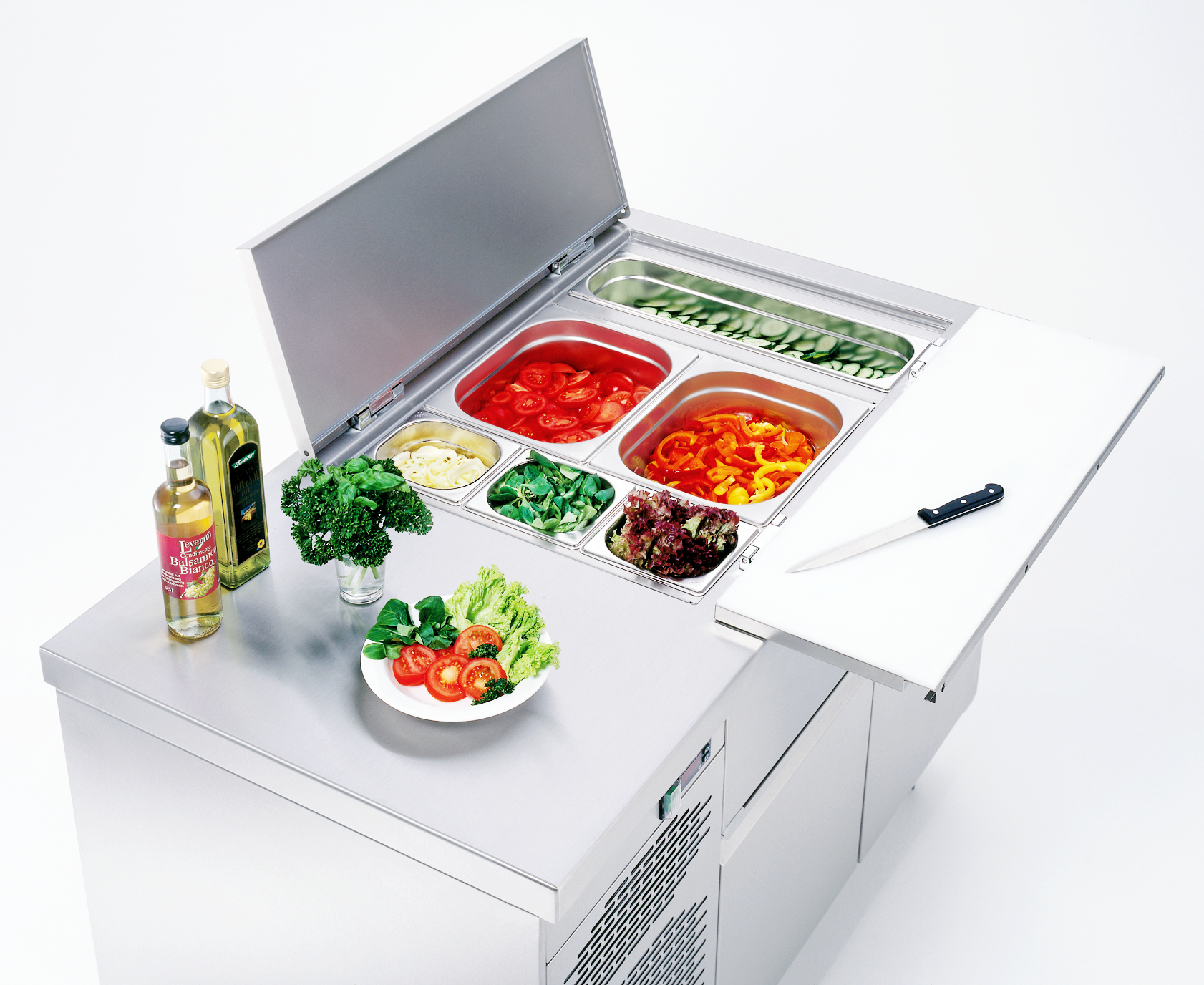

Saladettes with side machine compartment
- Refrigeration range +2 °C to +16 °C
- Cabinet body completely made of stainless steel AISI 304
- Pressure-foamed with PU insulation foam, Insulation thickness 60mm
- Open at the top for inserting GN Containers
- Doors/panels with magnetic frame seal
- Foot height 150 mm (or as required for the project)
- Machine compartment with cooling unit on the left side, Option: Position on the right side
- Options: with worktop stainless steel 50 mm – material thickness 1.0 mm, rear with 50-mm upstand / front with drip edge or front and rear with drip edge
- Accessories (included): Sliding/hinged lid, Option: Hinged lid with cutting board
- Standard execution - Built-in cooling with hinged doors, Machine compartment left side
- Standard execution - Remote cooling with hinged doors, Technical compartment left side
- Option: Drawer blocks 2 x 1/2 // 1/3 + 2/3
Saladettes with base unit
- Refrigeration range +2 °C to +16 °C
- Cabinet frame completely made of stainless steel AISI 304
- Pressure-foamed with PU insulation foam, Insulation thickness 60 mm
- Open at the top for inserting GN containers
- Doors/panels with magnetic frame seal
- Machine compartment in the base (base cooling unit)
- Options: with worktop stainless steel 50 mm – material thickness 1.0 mm, rear with 50-mm upstand / front with drip edge or front and rear with drip edge
- Accessories (included): Sliding/hinged lid, Option: Hinged lid with cutting board
- Cut-out: Open at the top for inserting GN containers
- Standard execution - Built-in cooling with hinged doors
- Option: Drawer blocks 2 x 1/2 // 1 x 1

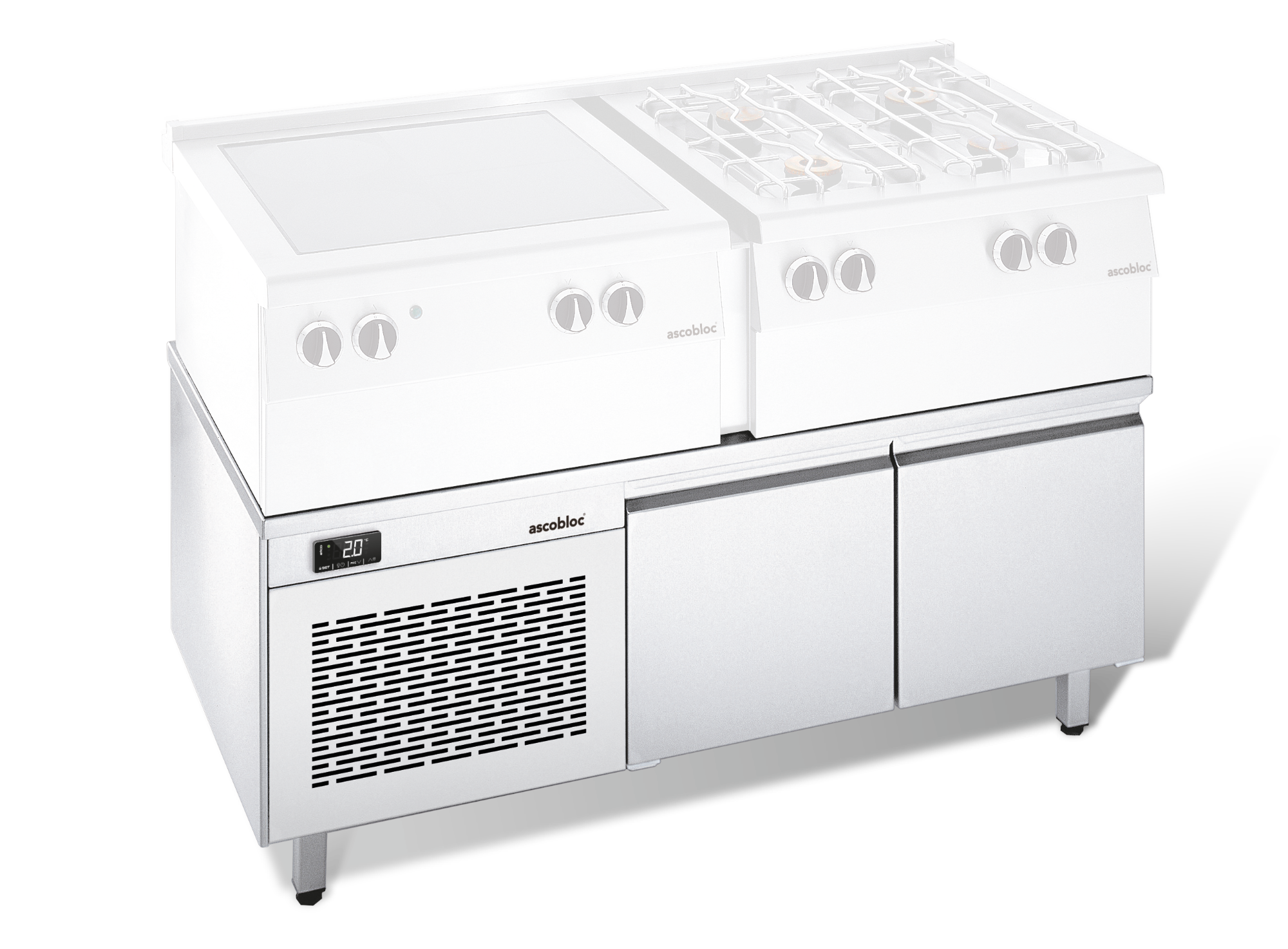

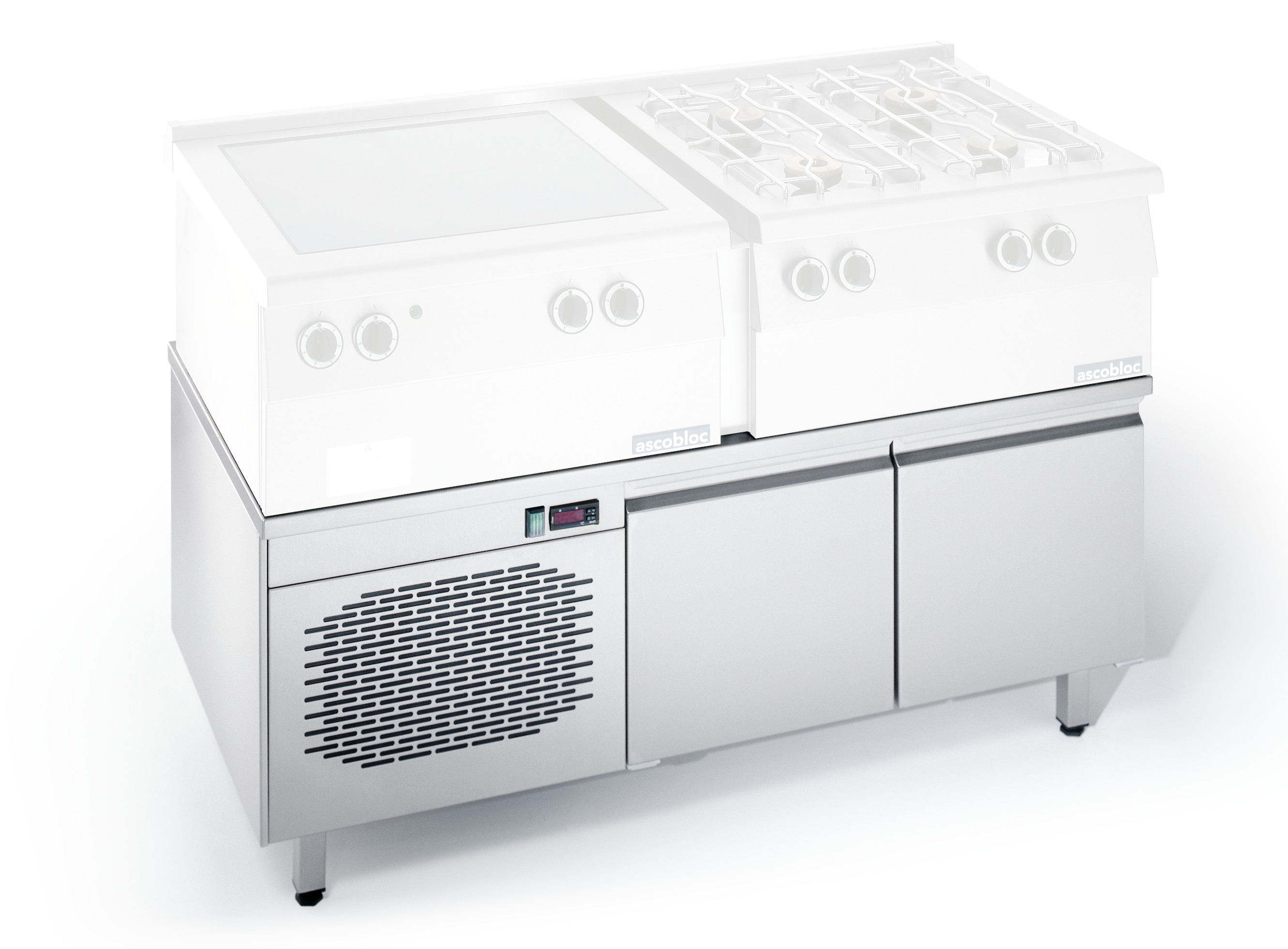

Refrigertated snack counters with side machine compartment
- Tested as per (EU) 2015/1094
- Reduced height for combination with table-top appliances
- Refrigeration range -2 °C to +12 °C
- Cabinet body completely made of stainless steel AISI 304
- Pressure-foamed with PU insulation foam, Insulation thickness 60 mm
- Doors/panels with magnetic frame seal
- Machine compartment with cooling unit on the left side, Option: Position on the right side
- Foot height 150 mm (or as required for the project)
- Options: with worktop stainless steel 50 mm – material thickness 1.0 mm, rear with 50-mm upstand / front with drip edge or front and rear with drip edge
- Option: with stainless steel fixing plate
- Standard execution - Built-in cooling with hinged doors, Machine compartment left side
- Standard execution - Remote cooling with hinged doors, Technical compartment left side
- Option: Drawer blocks 2 x 1/2 // 1 x 1
