Ranges & ovens
Electric ranges with cast-iron hot plates
- Cast-iron hot plates with 2 separately adjustable cooking zones each 3.0 kW
- Each cooking zone regulated via 5-phase switch
- Hot plates placed on support collar thermally dexoupling it from top plate
- Energy saving by temperature switch
- Option: baking and roasting oven with static upper and lower heat, alternatively with switch-over to convection mode
| Number of cast-iron cooktops | 1 | 2 | 3 |
| Number of cooking zones | 2 | 4 | 6 |
| Dimensions of cooking zones | 285 x 280 mm | 285 x 280 mm | 285 x 280 mm |
| Free-standing appliance | AEH 210 | AEH 410 | AEH 610 |
| Free standing appliance with oven | - | AEH 413 | AEH 613 |
| Free standing appliance with convection oven | - | AEH 415 | AEH 615 |
| Free standing appliance with convection oven | AEH 218 | AEH 418 | AEH 618 |
Electric ranges with solid steel hot plate
- Steel hot plate with 4 cooking zones each 3.0 kW with separate regulation
- Heating zones independently controlled by thermostat for effective cooking, simmering and keeping warm
- Each cooking zone regulated via 5-phase switch
- Hot plates placed on support collar thermally dexoupling it from top plate
- Energy saving by temperature switch
- Option: baking and roasting oven with static upper and lower heat, alternatively with switch-over to convection mode
| Number of cooking zones | 4 |
| Dimensions cooking zones | 297 x 290 mm |
| Free-standing appliance | AEH 440 |
| Free-standing appliance with oven | AEH 443 |
| Free-standing appliance with convection oven | AEH 445 |
| Table-top/Wall appliance | AEH 448 |

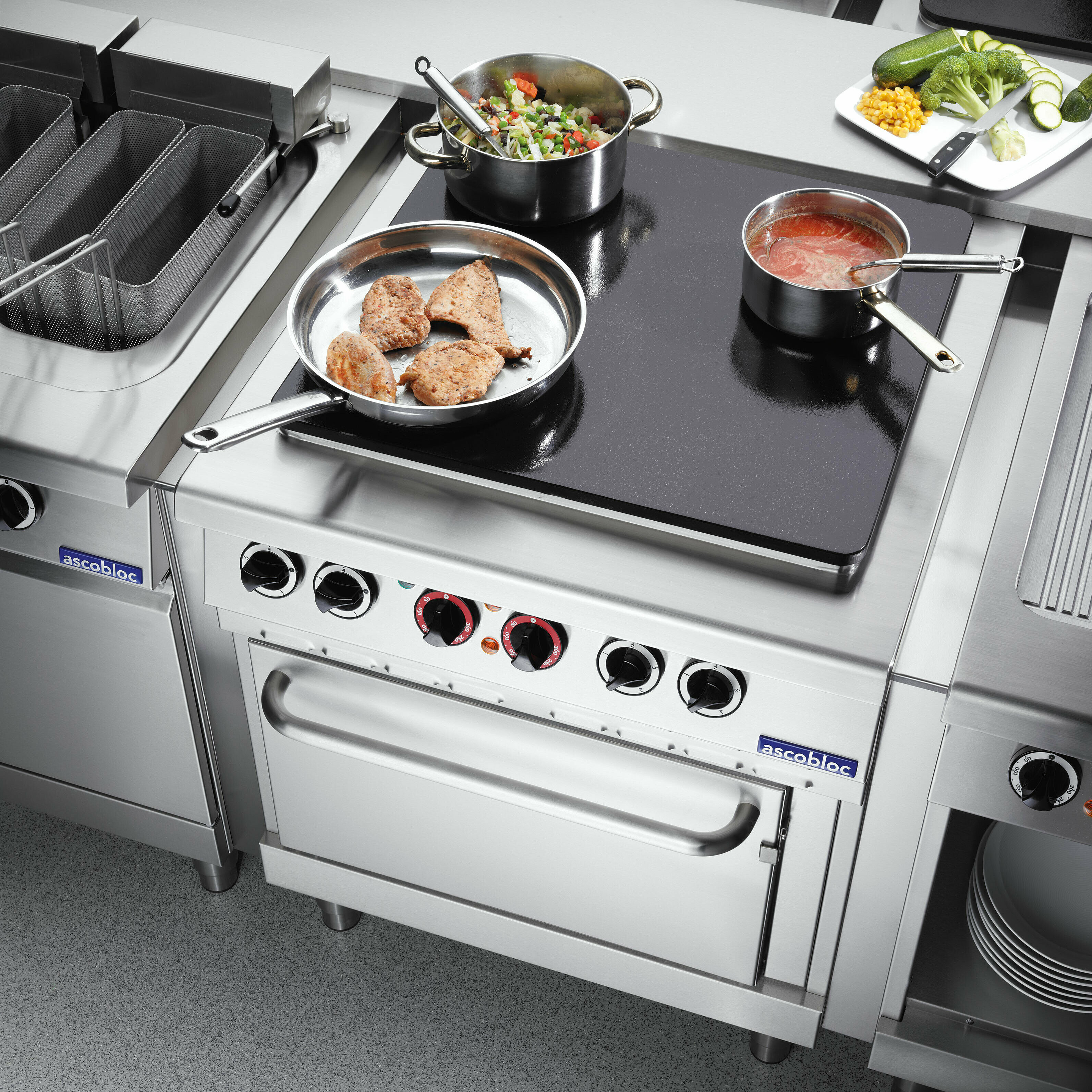

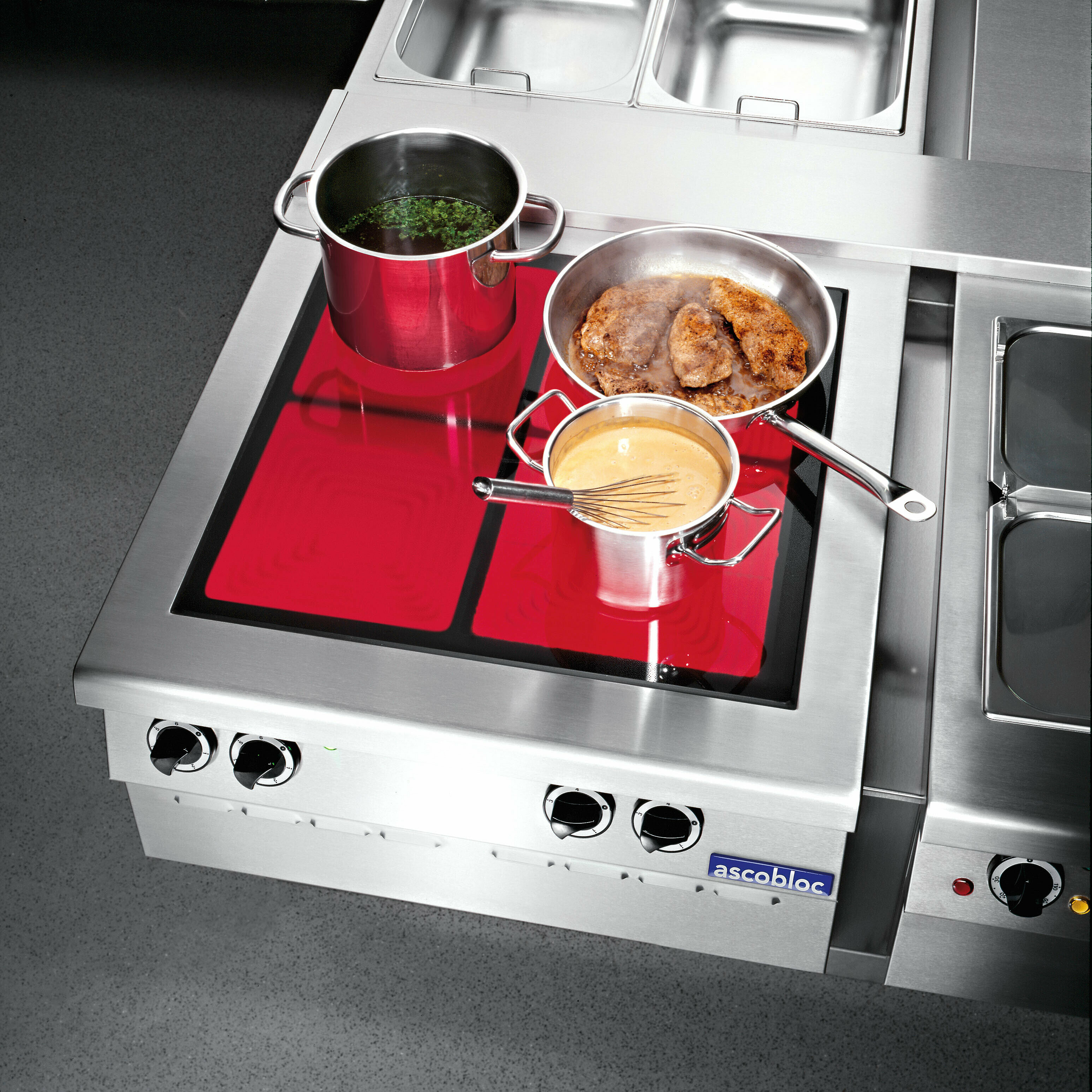

Electric ranges with glass ceramic surfaces
- Full glass ceramic surface, waterproof and surfaced flush sealed into the top frame
- Easy to clean
- Rapid heat-up
- Cooking zones each 3.0 kW separated by decorative pattern
- Regulation of heating power via continuous energy controller
- Option: baking and roasting oven with upper and lower heat, alternatively with switch-over to convection mode
- Option: with pot recognition
| Number of cooking zones | 2 | 4 | 6 |
| Number of cooking zones | 230 x230 mm | 230 x230 mm | 230 x230 mm |
| Free-standing appliance | AEH 300 | AEH 500 | AEH 700 |
| Free-standing appliance with oven | - | AEH 503A) | AEH 703 |
| Free-standing appliance with convection oven | - | AEH 505A) | AEH 705 |
| Table-top/Wall appliance | AEH 308 | AEH 508 | AEH 708 |
A) not suitable for plinth installation
Electric induction ranges with glass ceramic surfaces
Point induction
- Continuous cooking surface, watertight and flush-mounted in the CNS cover
- Easy to clean, removable air filter at the front
- High efficiency
- Cooking zones separated by plate decor, pan detection and error signaling
- Stepless power regulation
- Increased energy efficiency thanks to main appliance switch (standby switch-off)
- Bluetooth interface for optimum customer service
- Connection to power optimization system in accordance with DIN 18875 (interface ABCD)
| Number of cooking zones | 2 | 4 | 6 |
| Hob dimensions | 333 mm x 543 mm | 633 mm x 543 mm | 933 mm x 543 mm |
| Round coil | |||
| Cooking zones | 2 x 5,0 kW | 4 x 5,0 kW | 6 x 5,0 kW |
| Dimensions of induction coil | 2 x Ø 210 mm | 2 x Ø 210 mm | 2 x Ø 210 mm |
| Free-standing appliance - Typ | AEH 350 | AEH 550 | AEH 750 |
| Table-top/Wall appliance - Typ | AEH 358 | AEH 558 | - |
| Square coil Connected load limited through power management | |||
| Cooking zones | 2 x 8,0 kW | 4 x 8,0 kW | 6 x 8,0 kW |
| Dimensions of induction coil | 2 x 210 mm x 210 mm | 2 x 210 mm x 210 mm | 2 x 210 mm x 210 mm |
| Free-standing appliance - Typ | AEH 360 | AEH 560 | AEH 760 |
| Table-top/Wall appliance - Typ | AEH 368 | AEH 568 | - |

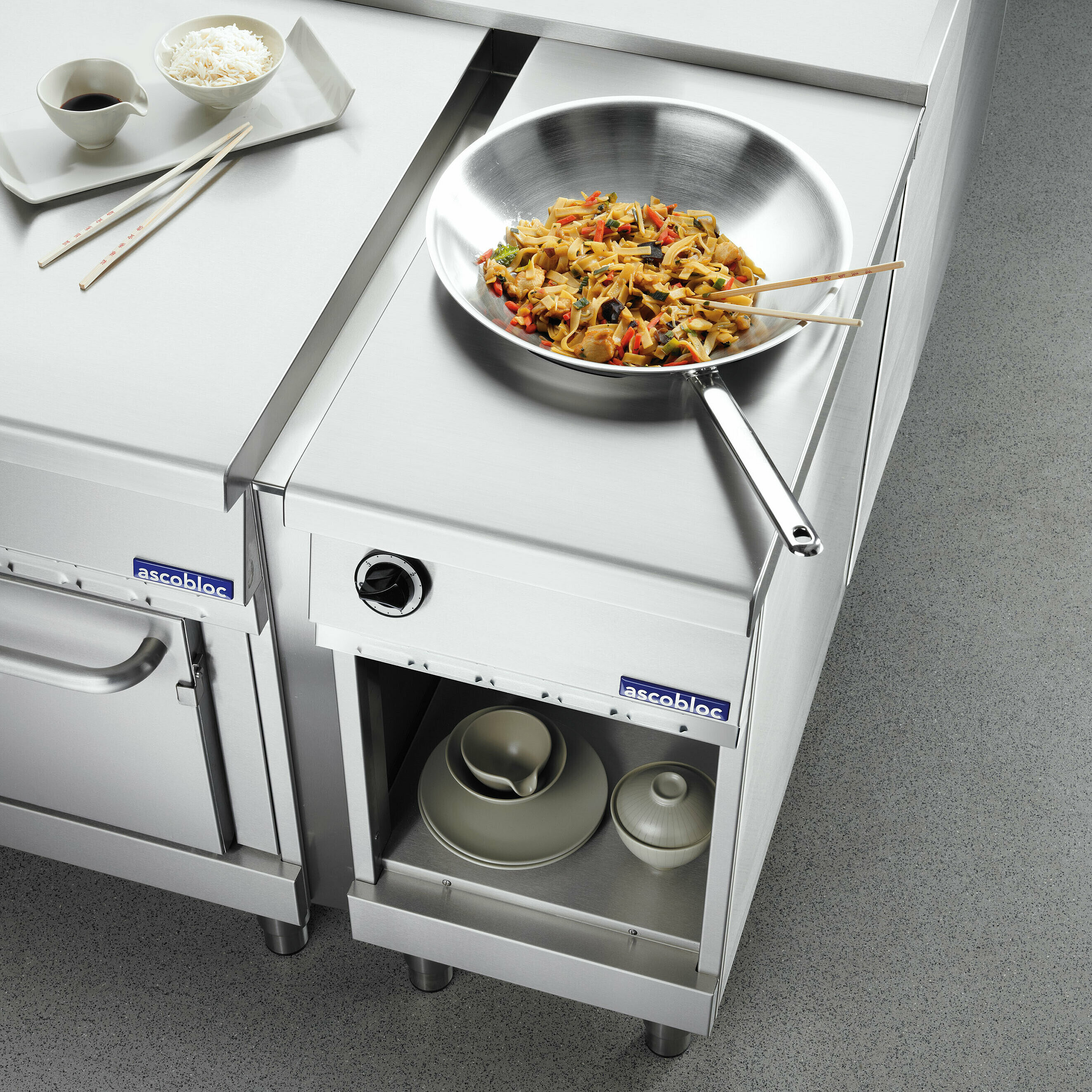

Electric induction wok
- Spherical glass ceramic bowl, waterproof sealed in a stainless steel frame
- Easy to clean
- Induction wok with integrated bowl-coil for extensive heating of the wok pan
- Power regulation via switch-potentiometer combination
- With electronic wok pan detection and error warning
- Support collar with spacer for a thermal decoupling of the wok pan
| Dimensions induction coil | Ø 300 mm |
| Free-standing appliance | AEC 200 |
| Table-top/Wall appliance | AEC 208 |
Gas ranges with open cooking zones
- Deep drawn hobs, seamlessly welded into top plate
- Depth of hob 65 mm
- Each burner with pilot flame and thermoelectric flame supervision device
- Open burners with manual ignition
- Pot-supports made of stainless steel ensure stability even smaller pots
- Option: Electric baking and roasting oven with static upper and lower heat, alternatively with switch-over to convection mode or gas heated baking and roasting oven
| Number of cooking zones | 2 | 4 | 6 |
| Number of burners | 1 x C - 4,0 kW / 1 x D - 6,0 kW | 2 x C - 4,0 kW / 2 x D - 6,0 kW | 3 x C - 4,0 kW / 3 x D - 6,0 kW |
| Free-standing appliance | AGH 210 | AGH 410 | AGH 610 |
| Free-standing appliance with electric oven | - | AGH 413 | AGH 613 |
| Free-standing appliance with electric convection oven | - | AGH 415 | AGH 615 |
| Free-standing appliance with gas oven | - | AGH 417 | AGH 617 |
| Table-top/Wall appliance | AGH 218 | AGH 418 | AGH 618 |

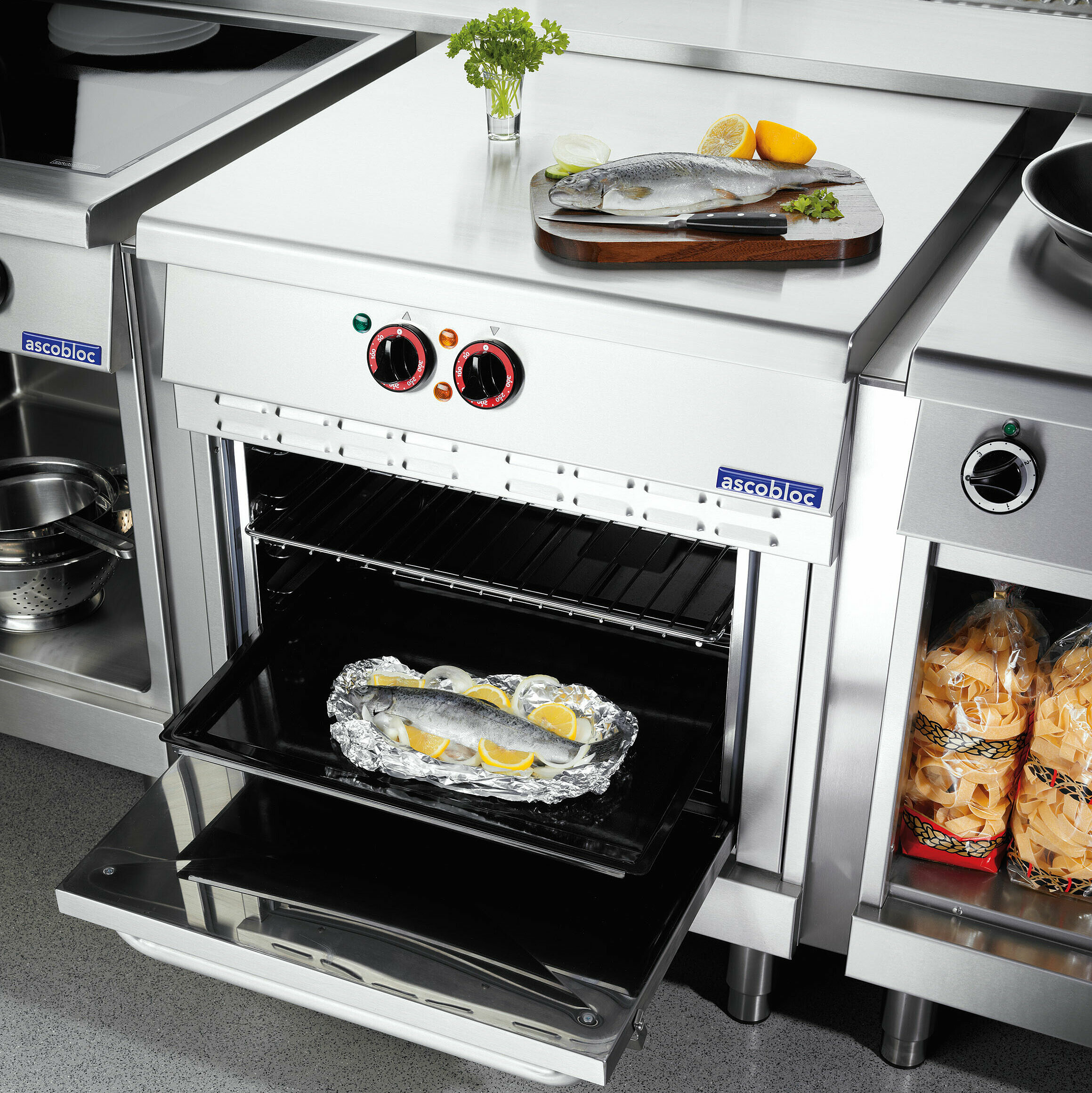

Electric oven with worktop
- Free-standing model with smooth worktop and electric baking oven in the substructure
- AEH 030: Baking and roasting oven with static heating. Tubular heating elements on the inner side, 2 x 2.1 kW. Temperature range: 50 – 300°C separately regulated by thermostat.
- AEH 050: as AEH 030, but switchable to convection mode with hot-air–fan 6.0 kW on the rear side, Temperature range: 50 – 250°C
- Removable bottom cast iron plate as heat accumulator
- 3 insertion levels for baking trays and gridirons
| Free-standing appliance with electric oven | AEH 030 |
| Free-standing appliance with electric convection oven | AEH 050 |
