Ranges & ovens

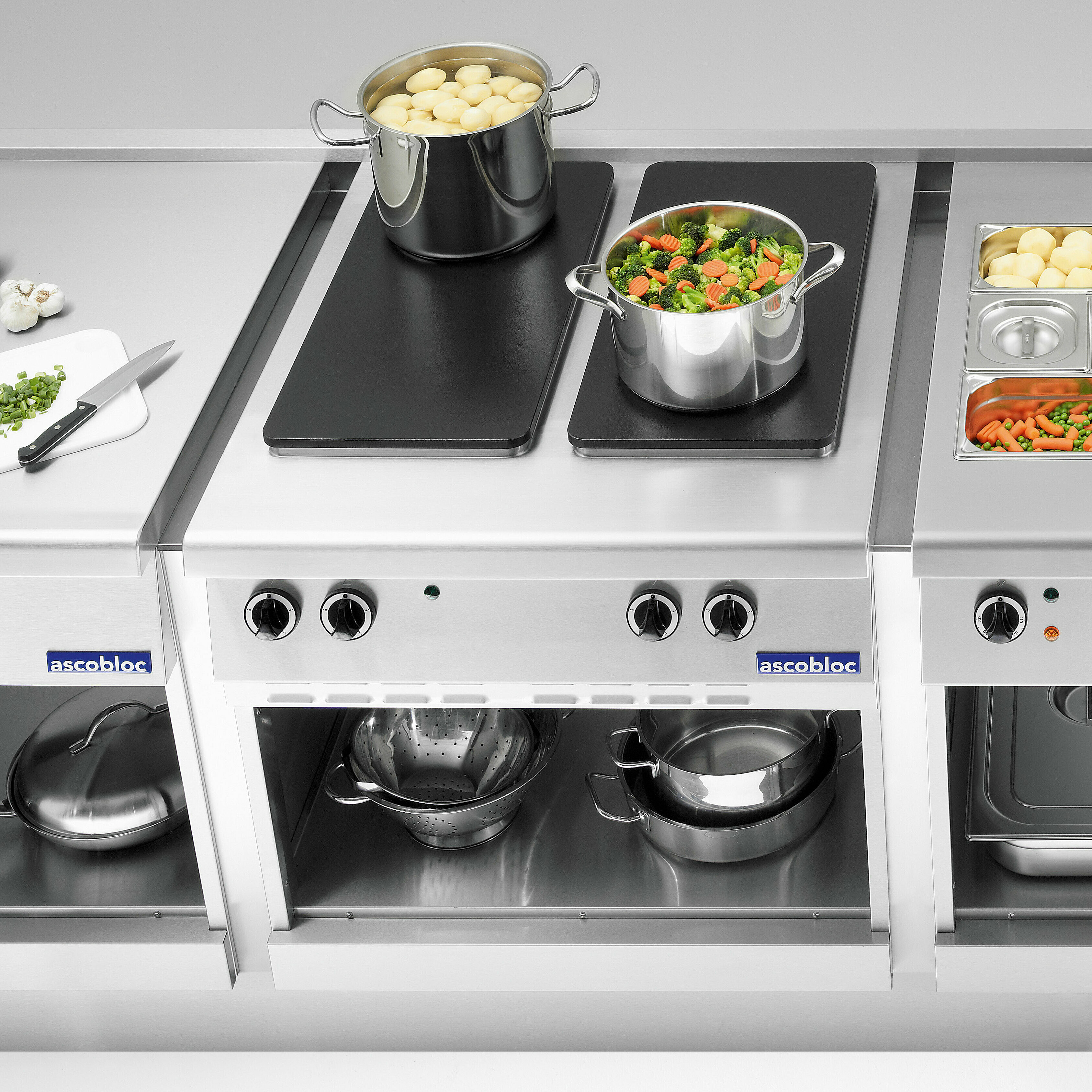

Electric ranges with steel hot plates
- Steel hot plates with two cooking zones each 3.5 kW with separate regulation
- Each cooking zone regulated via 5-phase switch
- Hot plate placed on support collar thermally decoupling it from top plate
- Energy saving by temperature limit switch
- Option: Baking and roasting oven with static upper and lower heat, alternatively with switch-over to convection mode
| Number of cooking zones | 2 | 4 | 6 |
| Dimensions of cooking zones | 325 x 322,5 mm | 325 x 322,5 mm | 325 x 322,5 mm |
| Free-standing appliance | MEH 211 | MEH 411 | MEH 611 |
| Free-standing appliance with oven | - | MEH 414 | MEH 614 |
| Free-standing appliance with convection oven | - | MEH 416 | MEH 616 |
Electric ranges with solid steel hot plate
- Seamless steel top plate with four cooking zones each 3.5 kW with separate regulation
- For effective cooking, simmering and keeping warm, the cooking zones regulated via 5-phase switch
- Hot plates placed on support collar thermally decoupling it from top plate
- Energy saving by temperature limit switch
- Option: Baking and roasting oven with static upper and lower heat, alternatively with switch-over to convection mode
| Number of cooking zones | 4 |
| Dimensions cooking zones | 325 x 322,5 mm |
| Free-standing appliance | MEH 440 |
| Free-standing appliance with oven | MEH 443 |
| Free-standing appliance with convection oven | MEH 445 |

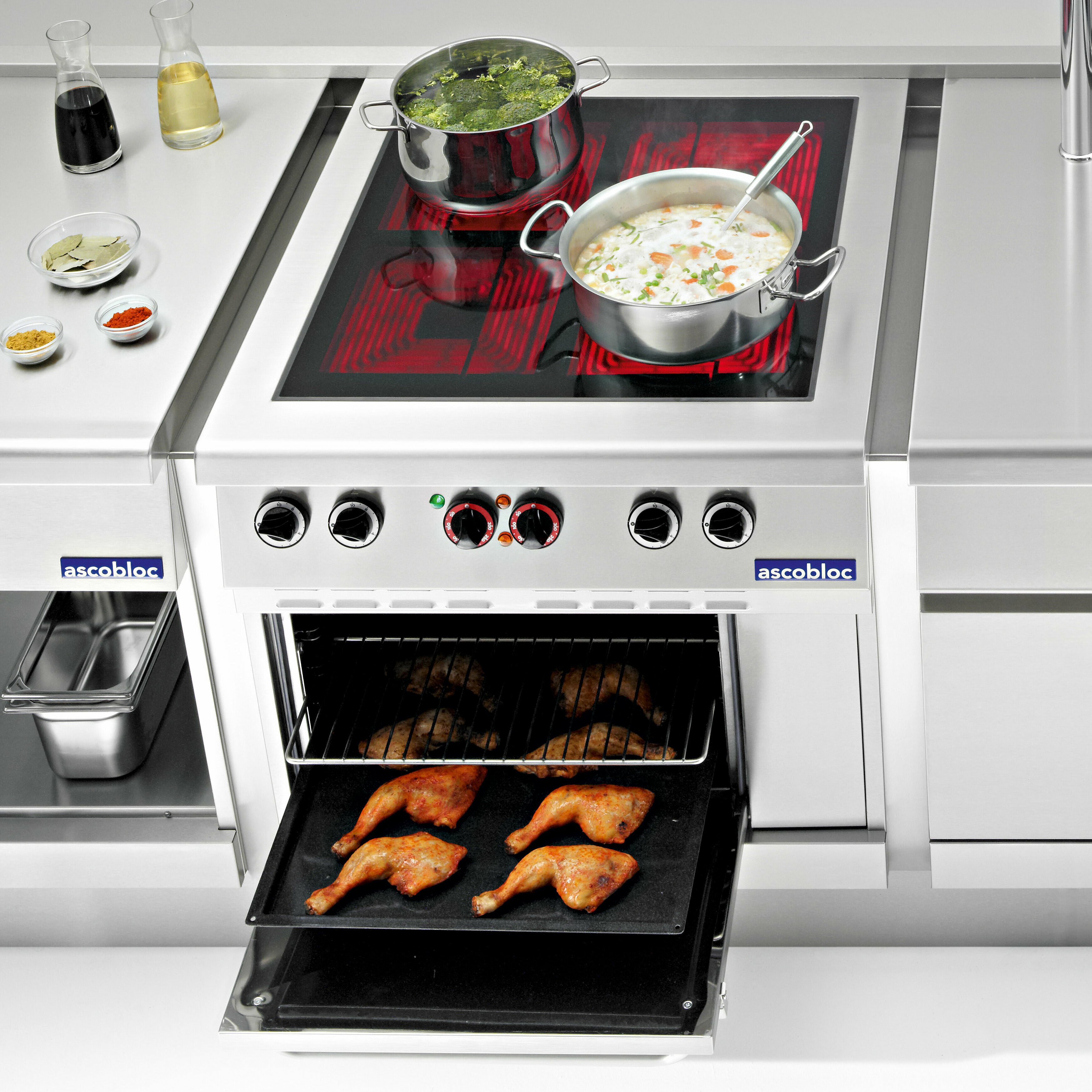

Electric ranges with glass ceramic surface
- Full glass ceramic surface, waterproof and surfaces flush sealed into the top frame
- Easy to clean
- Rapid heat up
- Cooking zones each 4.0 kW separated by decorative pattern
- Regulation of heating power via continuous energy controller
- Option: Baking and roasting oven with upper and lower heat, alternatively with switch-over to convection mode
| Number of cooking zones | 2 | 4 | 6 |
| Dimensions of cooking zones | 280 x 280 mm | 280 x 280 mm | 280 x 280 mm |
| Free-standing appliance | MEH 300 | MEH 500 | MEH 700 |
| Free-standing appliance with oven | - | MEH 503 | MEH 703 |
| Free-standing appliance with convection oven | - | MEH 505 | MEH 705 |
Induction ranges with glass ceramic surfaces
Point induction
- Continuous cooking surface, watertight and flush-mounted in the CNS cover
- Easy to clean, removable air filter at the front
- High efficiency
- Cooking zones separated by plate decor, pan detection and error signaling
- Stepless power regulation
- Increased energy efficiency thanks to main appliance switch (standby switch-off)
- Bluetooth interface for optimum customer service
- Connection to power optimization system in accordance with DIN 18875 (interface ABCD)
| Number of cooking zones | 2 | 4 | 6 |
| Hob dimensions | 340 mm x 688 mm | 648 mm x 688 mm | 948 mm x 688 mm |
| Round coil | |||
| Cooking zones | 2 x 5,0 kW | 4 x 5,0 kW | 6 x 5,0 kW |
| Dimensions of induction coils | 2 x Ø 240 mm | 4 x Ø 240 mm | 6 x Ø 240 mm |
| Free-standing appliance - Typ | MEH 350 | MEH 550 | MEH 750 |
| Square coil Connected load limited through power management | |||
| Cooking zones | 2 x 8,0 kW | 4 x 8,0 kW | 6 x 8,0 kW |
| Dimensions of induction coils | 2 x 240 mm x 240 mm | 4 x 240 mm x 240 mm | 6 x 240 mm x 240 mm |
| Free-standing appliance - Typ | MEH 360 | MEH 560 | MEH 760 |

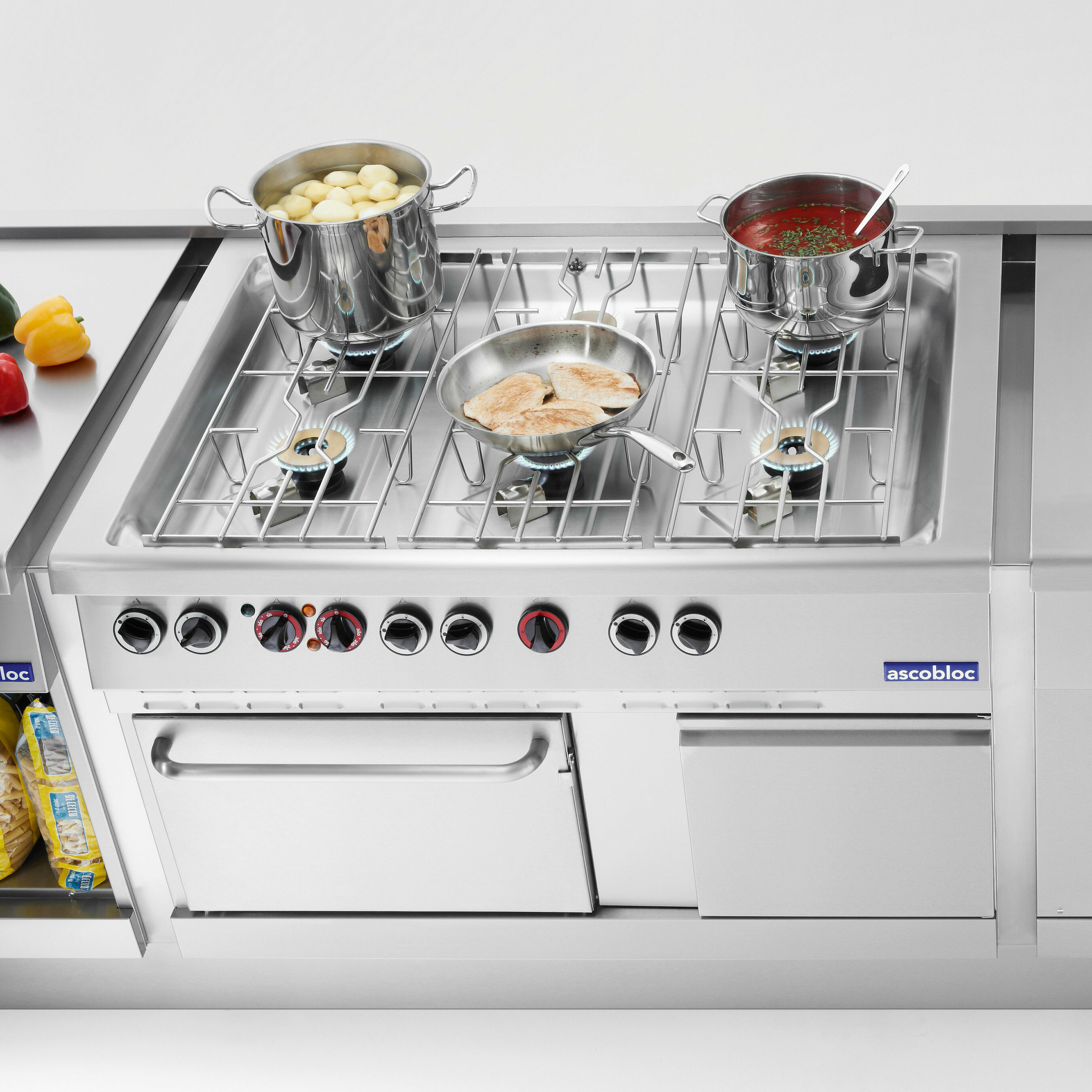

Gas ranges with open cooking zones
- Deep drawn hob, seamlessly welded into top plate with large radii
- Depth of hob 82 mm
- Each burner with pilot flame and thermoelectric flame supervision device
- Open burners with manual ignition
- Pot-supports made of stainless steel ensure stability even smaller pots
- Option: Electric baking and roasting oven with static upper and lower heat, alternatively with switch-over to convection mode or gas heated baking and roasting oven
| Number of cooking zones | 2 | 4 | 6 |
| Number of burners | 1 x C - 3,5 kW / 1 x E - 7,5 kW | 1 x C - 3,5 kW / 2 x D - 5 kW / 1 x E - 7,5 kW | 2 x C - 3,5 kW / 2 x D - 5 kW / 2 x E - 7,5 kW |
| Free-standing appliance | MGH 210 | MGH 410 | MGH 610 |
| Free-standing appliance with electric oven | - | MGH 413 | MGH 613 |
| Free-standing appliance with electric convection oven | - | MGH 415 | MGH 615 |
| Floor-standing appliances with gas oven | - | MGH 417 | MGH 617 |

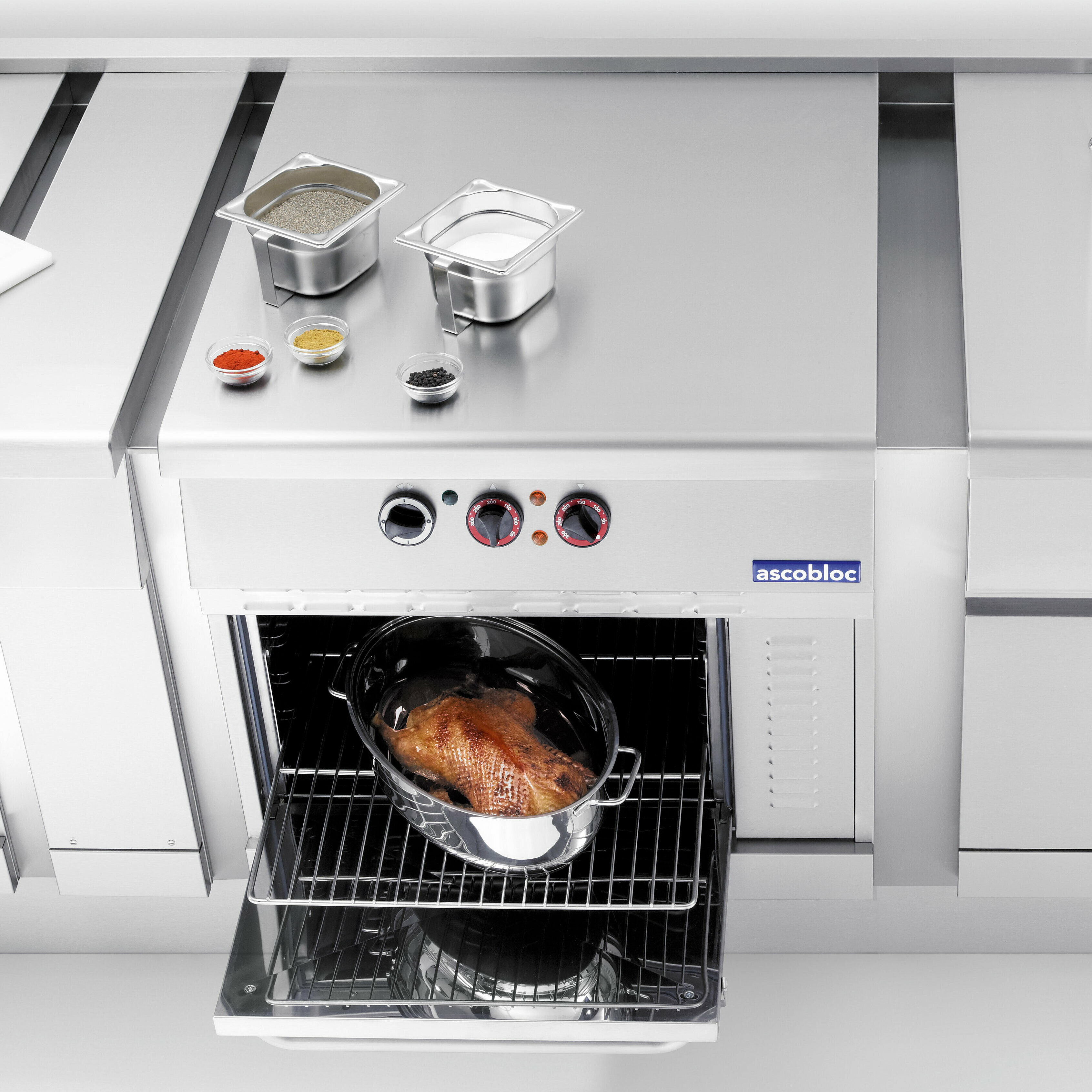

Electric substructure oven with worktop
- Free-standing model with smooth worktop and electric baking oven in the substructure
- MEH 030: Baking and roasting oven with static upper- and lower heat, separately thermostatically controlled. Temperature 50 – 300°C.
- MEH 050: as MEH 030, but optional with switch-over to convection mode, arranged laterally. Temperature 50 – 250°C
- Removable bottom cast iron plate as heat accumulator
- Three insertion levels for baking trays and gridirons
| Free-standing appliance with electric oven | MEH 030 |
| Free-standing appliance with electric convection oven | MEH 050 |
