Ranges & ovens
Electric ranges with cast-iron hot plates
- Cast-iron hot plates with two cooking zones each 3.0 kW with separate regulation
- Each cooking zone regulated via 5-phase switch
- Hot plates accommodated in a closed, 3 mm deep recess with support collar and are thermally decoupled from this
- Economy mode by limited temperature via protector
- Switch panel ready-to-install wired with function module
- Function module and switch panel protected through a metal sheet casing
| Number of cooking zones | 2 | 4 |
| dimensions cooking zones | 285 x 280 mm | 285 x 280 mm |
| outer dimensions | 400 x 610 mm | 700 x 610 mm |
| Type | IEH 210 | IEH 410 |
Electric ranges with glass ceramic surfaces
- Full glass ceramic surface, waterproof and surfaces flush sealed into the installation frame
- Easy to clean
- Rapid heat up
- Cooking zones separated by decorative pattern
- Each cooking zone with smooth and continuous regulation via energy regulator
- Switch panel ready-to-install wired with function module
- Function module and switch panel protected through a metal sheet casing
- Option: with pot detection
| Number of cooking zones | 2 | 4 |
| dimensions cooking zones | 230 x230 mm | 230 x 230 mm |
| outer dimensions | 400 x 610 mm | 700 x 610 mm |
| Type | IEH 300 | IEH 500 |
Electric warming plates with glass ceramic surfaces
- Full glass ceramic surface, waterproof and surfaces flush sealed into the installation frame
- Easy to clean
- Heating with smooth and continuous regulation via energy regulator
- Switch panel ready-to-install wired with function module
- Function module and switch panel protected through a metal sheet casing
| Number of hot plates | 1 | 1 | 1 |
| Dimensions of hot plates | 310 x 540 mm | 560 x 550 mm | 310 x 540 mm |
| Outer dimensions | 400 x 610 mm | 600 x 610 mm | 400 x 610 mm |
| Type | IEH 010 | IEH 020 | IEH 110 A) |
| A) with continuous cooking stage |
Electric induction ranges with glass ceramic surfaces - point induction
- Full glass ceramic surface, waterproof and surfaces flush sealed into the top-frame
- Induction generator of 5.0 kW each cooking zone with pot detection and fault report
- Easy to clean
- Rapid heat up
- Cooking zones separated by decorative pattern
- Smooth and continuous power regulation via energy regulator
- Switch panel ready-to-install wired with function module
- Switch panel protected through a metal sheet casing
- Switch box protected by sheet metal casing
| Number of cooking zones | 2 | 4 |
| Dimensions induction coils | Ø 230 mm | Ø 230 mm |
| outer dimensions | 400 x 610 mm | 700 x 610 mm |
| Type | IEH 350 | IEH 550 |

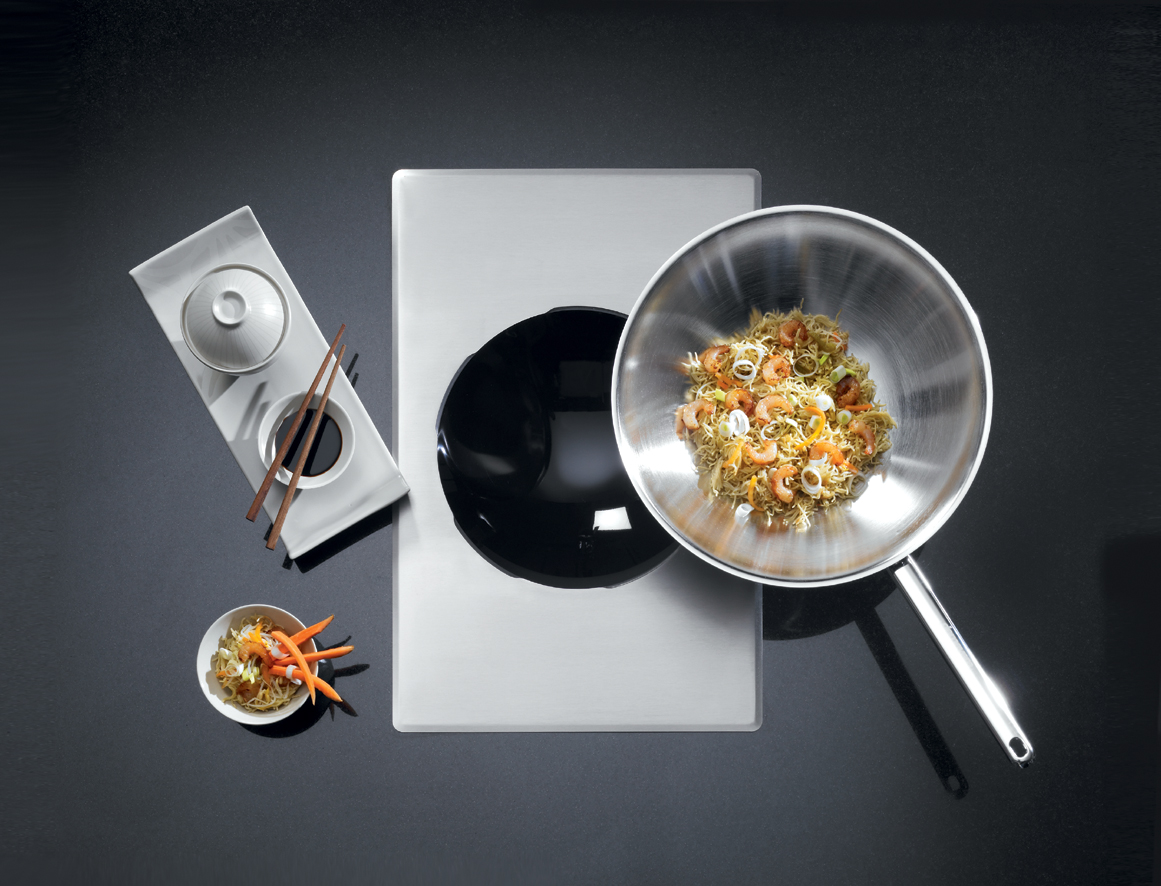

Electric induction wok
- Spherical glass ceramic bowl, waterproof and surfaces flush sealed into the installation frame
- Easy to clean
- Integrated wok coil for an extensive heating of the wok bowl
- Smooth and continuous power regulation via energy regulator
- Switch panel ready-to-install wired with function module
- Function module and switch panel protected through a metal sheet casing
- Switch panel with function module wired ready for installation
- Function module and switch box protected by sheet metal sheathing
| Number of cooking zones | 1 | |
| Dimensions induction coils | Ø 300 mm | |
| Outer dimensions | 400 x 610 mm | |
| Type | IEC 200 |

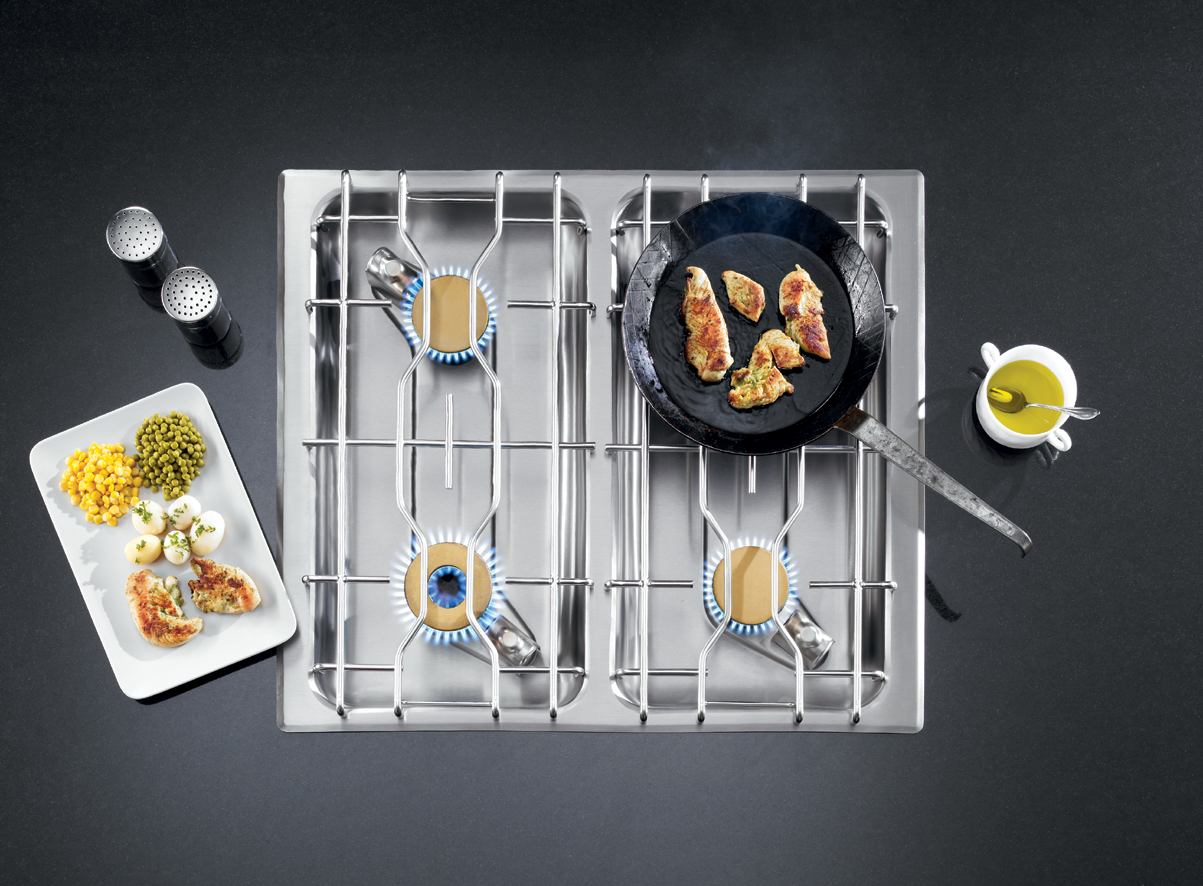

Gas ranges with open cooking zones
- Deep drawn hob, seamlessly welded into the installation frame
- Depth of hob 65 mm
- Each burner with pilot flame and thermoelectric flame supervision
- Switch panel connected to function module via gas line
- Pot support as sliding grate made of stainless steel is also suitable for small pots
- Switch panel connected to cooking module via gas line at the factory
| Number of cooking zones | 2 | 4 |
| number of burners | 1 x C - 3,5 kW / 1 x D - 5,0 kW | 2 x C - 3,5 kW / 2 x D - 5,0 kW |
| outer dimensions | 400 x 610 mm | 700 x 610 mm |
| Type | IGH 210 | IGH 410 |
