Frying plates & -pans

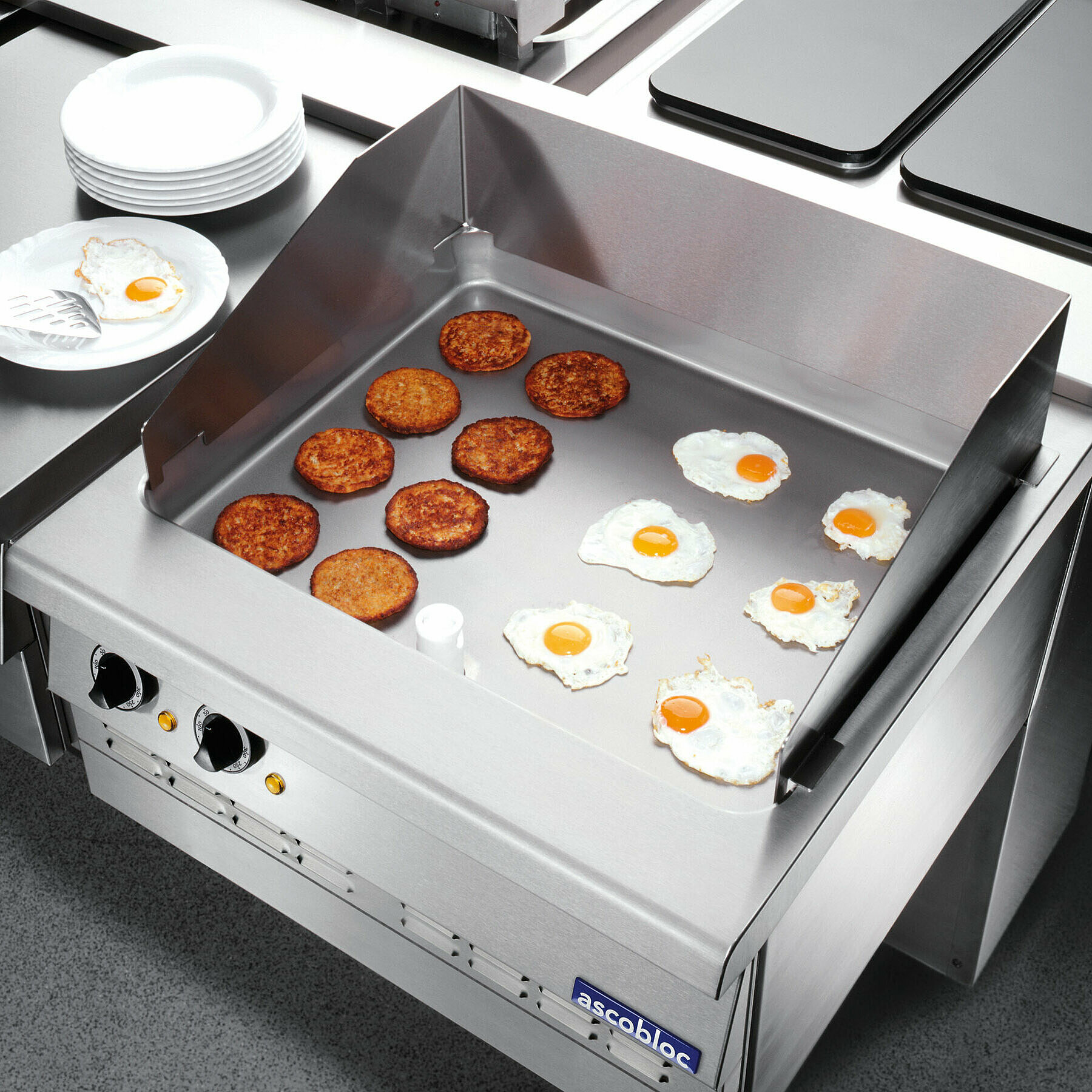

Electric frying plates with compense bottom
- 65 mm deep drawn basin made of chromium-nickel steel seamlessly welded into the top frame
- Frying surface made of composite metal (stainless-steel / copper)
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying surface with anti-sticking property
- Drainage via closable scrap outlet Ø 36 mm in drip pan GN 1/1-65
- Indirect heating by radiant heaters
- Regulated by thermostat from 50 up to 260°C
| Size | GN 1/1 | GN 2/1 |
| Number of frying zones | 1 | 2 |
| Basin dimensions | 305 x 510 x 65 mm | 630 x 510 x 65 mm |
| Free-standing appliance | AEB 230 | AEB 430 |
| Table-top/Wall appliance | AEB 238 | AEB 438 |
Gas frying plates with compense bottom
- 65 mm deep drawn basin made of chromium-nickel steel seamlessly welded into the top frame
- Frying surface made of composite material (stainless steel / copper)
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying surface with anti-sticking property
- Drainage via closable scrap outlet Ø 36 mm in drip pan GN 1/1-65
- Heated by circular burner with continuous regulation between 50 and 260°C
- With piezo-ignition, pilot flame and thermoelectric flame supervision device
| Size | GN 1/1 | GN 2/1 |
| Number of frying zones | 1 | 2 |
| Basin dimensions | 305 x 510 x 65 mm | 630 x 510 x 65 mm |
| Free-standing appliance | AGB 230 | AGB 430 |
| Table-top/Wall appliance | AGB 238 | AGB 438 |
Electric griddle & grill plates with steel surfaces
- Frying plate made of heat resistant steel, on request hard chrome plated
- 3 different surfaces available: smooth, ribbed, half ribbed
- Frying zones are separately regulated by thermostat from 50 to 260°C
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Indirect heating by radiant heaters
- Drainage via closable scrap outlet Ø 36 mm into drip pan GN 1/1-65
| Surface | fluted | smooth | fluted | fluted / smooth | smooth |
| Number of frying zones | 1 | 1 | 2 | 2 | 2 |
| Dimensions of frying surface | 305 x 510 mm | 305 x 510 mm | 630 x 510 mm | 630 x 510 mm | 630 x 510 mm |
| Free-standing appliance | AEB 240 | AEB 260 | AEB 440 | AEB 450 | AEB 460 |
| Table-top/Wall appliance | AEB 248 | AEB 268 | AEB 448 | AEB 458 | AEB 468 |
Gas griddle & grill plates with steel surfaces
- Frying plate made of heat resistant steel, on request hard chrome plated
- 3 different surfaces available: smooth, ribbed, half ribbed
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Drainage via closable scrap outlet Ø 36 mm into drip pan GN 1/1-65
- Frying zones are independently controlled by one capillary tube controller each from 50 - 260°C
- Heated by multiple bar burner with continuous regulation between 50 and 260°C
- With piezo-ignition, pilot flame and thermoelectric flame supervision device
| surface | fluted | smooth | fluted | fluted / smooth | smooth |
| number of frying zones | 1 | 1 | 2 | 2 | 2 |
| Dimensions of frying surface | 270 x 450 mm | 270 x 450 mm | 580 x 450 mm | 580 x 450 mm | 580 x 450 mm |
| Free-standing appliance | AGB 240 | AGB 260 | AGB 440 | AGB 450 | AGB 460 |
| Table-top/Wall appliance | AGB 248 | AGB 268 | AGB 448 | AGB 458 | AGB 468 |
Electric vapour grills
- Deep drawn basin, seamlessly welded into the top-frame for a fat- and dirt-collecting water filling
- With reflection sheet to grill with very high power
- Drainage via ball valve ¾“ downwards
- Direct heating with heating elements – retractable for easy cleaning
- Grill grate made out of solid chrome steel for an optimal heating of the grilled food
- Continuous regulation by thermostat
- Grill grate and reflection sheet can be cleaned in the dishwasher
| Number of grilling zones | 1 | 2 |
| Dimensions grilling surface | 310 x 340 mm | 465 x 340 mm |
| Free-standing appliance | AEG 200 | AEG 400 |
| Table-top/Wall appliance | AEG 208 | AEG 408 |
Gas charcoal grills
- Heated by powerful tubular burners with 8.5 kW each heating zone
- With piezo-ignition, pilot flame and thermoelectric flame supervision device
- Continuous power regulation via gas valve
- Grease collection container as extractable drawer
- Lavastones provide a smooth heat radiation and a gentle barbecuing
- Lava stone support grid made of heat-resistant steel (P 265 GH / DIN 10028-2)
- Appliance optional available with round bar grate or V-grate, each inclinable in the rear
| Number of grilling zones | 1 | 2 | 3 |
| Dimensions grilling area | 380x 480 mm | 680 x 480 mm | 980 x 480 mm |
| Free-standing appliance | AGL 200.100 | AGL 400.100 | AGL 600.100 |
| Table-top/Wall appliance | AGL 208.100 | AGL 408.100 | AGL 608.100 |

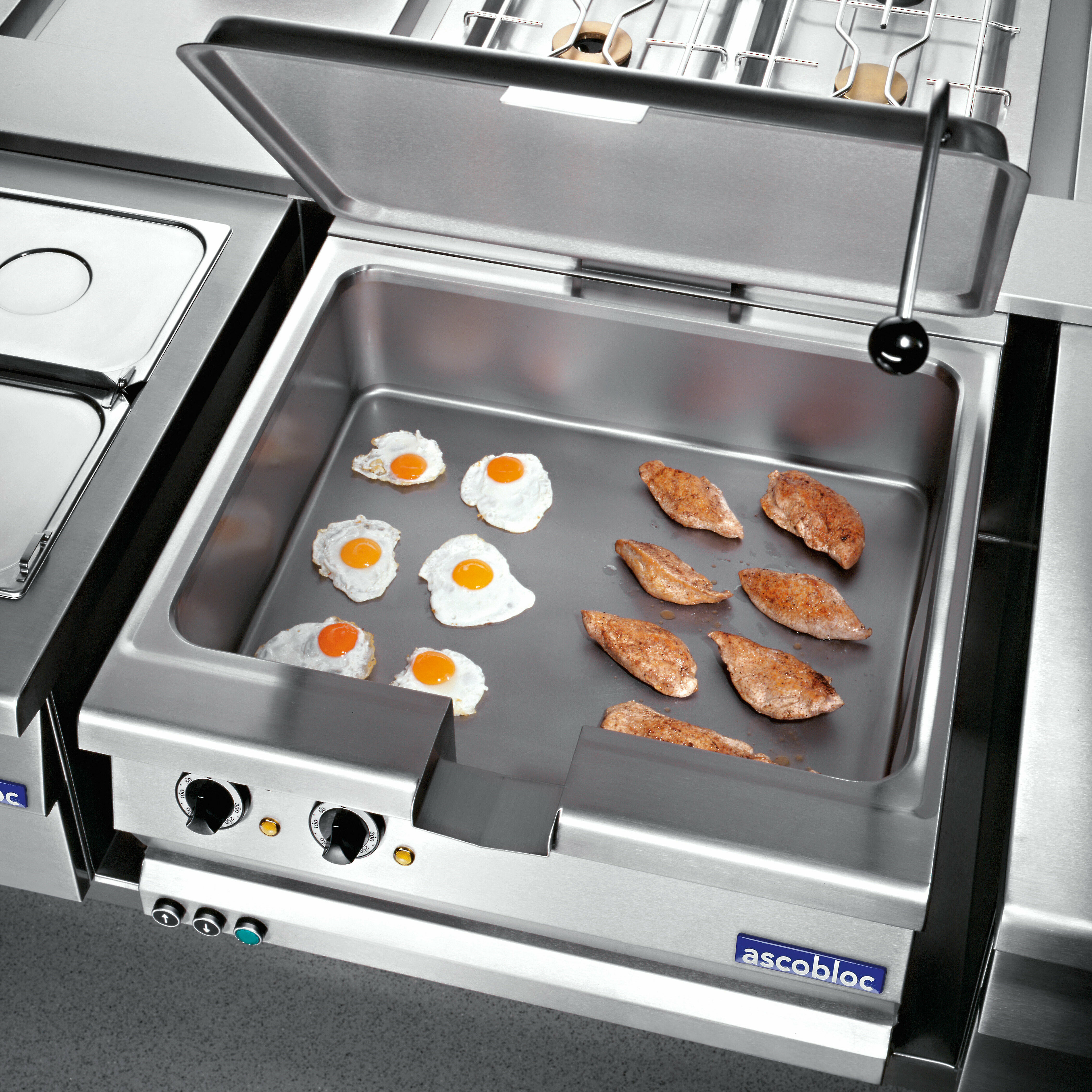

Electric tilting pans with compense bottom
- Space saving product design without lateral suspension
- Pan with seamlessly welded, deep drawn basin (170 mm deep) made of chromium-nickel-steel
- Spout almost remaining on same position thanks to rotating axis in front of pan
- Bottom of pan made of composite metal (copper)
- Two frying zones with separate thermostatic control from 50 - 260°C
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying surface with anti-sticking property
- Tilting by linear-driven motor (automatic cut-off when closing lid)
- Protection against overheating as 2nd safety device according to VDE/IEC
- Shut-down of heating during tilting
- Double-walled lid
| size | GN 2/1 |
| Number of frying zones | 2 |
| Dimensions of basin | 630 x 510 x 170 mm |
| Total / usable capacity | 43 l / 31 l |
| Free-standing appliance | AEP 500 |
| Table-top / Wall appliance | AEP 508 |
Gas tilting pans with compense bottom
- Space saving product design without lateral suspension
- Pan with seamlessly welded, deep drawn basin (170 mm deep) made of chromium-nickel-steel
- Spout almost remaining on same position thanks to rotating axis in front of pan
- Bottom of pan made of composite metal (copper)
- Short heating time, high heat conductivity, ideal heat distribution
- Two frying zones are independently controlled by one cappilary tube controller each from 50-260 °C
- Frying surface with anti-sticking property
- Tilting by linear-driven motor (automatic cut-off when closing lid)
- Protection against overheating as 2nd safety device according to VDE/IEC
- Heating via round burners with automatic firing system, high-voltage ignition and ionization flame monitoring
- Shut-down of heating during tilting
- Douple walled lid
| Size | GN 2/1 |
| Number of frying zones | 2 |
| Dimensions of basin | 630 x 510 x 170 mm |
| Total / usable capacity | 43 l / 31 l |
| Free-standing appliance | AGP 500 |
| Table-top / Wall appliance | AGP 508 |
Electric frying pans with compense bottom
- Pan with seamlessly welded basin made of chromium-nickel steel
- Bottom of pan made of composite metal (copper) with drain DN 50 downwards with ball valve and PTFE-plug
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Drain DN 50 downwards with ball valve and PTFE plug
- Frying surface with anti-sticking property
- Two frying zones with separate thermostatic control from 50 - 260°C
- Protection against overheating as 2nd safety device according to VDE/IEC
- Double-walled lid
- Each frying zone heated via radiant heating elements with infinitely variable control from 50 – 260 °C
| Size | GN 2/1 | GN 3/1 |
| Number of frying zones | 2 | 2 |
| Dimensions of basin | 630 x 510 x 170 mm | 955 x 510 x 170 mm |
| Total / usable capacity | 53 l / 40 l | 83 l / 63 l |
| Free-standing appliance | AEP 550 | AEP 650 |
| Table-top / Wall appliance | AEP 558 | AEP 658 |
