Boiling pans

Electric fast boiling pans with knob control

  • Indirectly heated, double jacket tank
  • Semi-closed low-maintenance heating system
  • Protection against boiling dry, built-in pressostat and safety valve
  • Lid of pan double walled and insulated
  • Robust, spring released and balanced stainless steel hinge
  • Drainage via safety valve DN 40
  • Water inlet through swivel tap
  • Pan bottom made of stainless steel DN 1.4571 (AISI 316 Ti)
  • Top plate with recess and drainage hole



Usable capacity64 l80 l100 l150 l
Interior diameterØ 484 x 410 mmØ 584 x 416 mmØ 584 x 470 mmØ 697 x 470 mm
Free-standing applianceMES 060MES 080MES 100MES 150

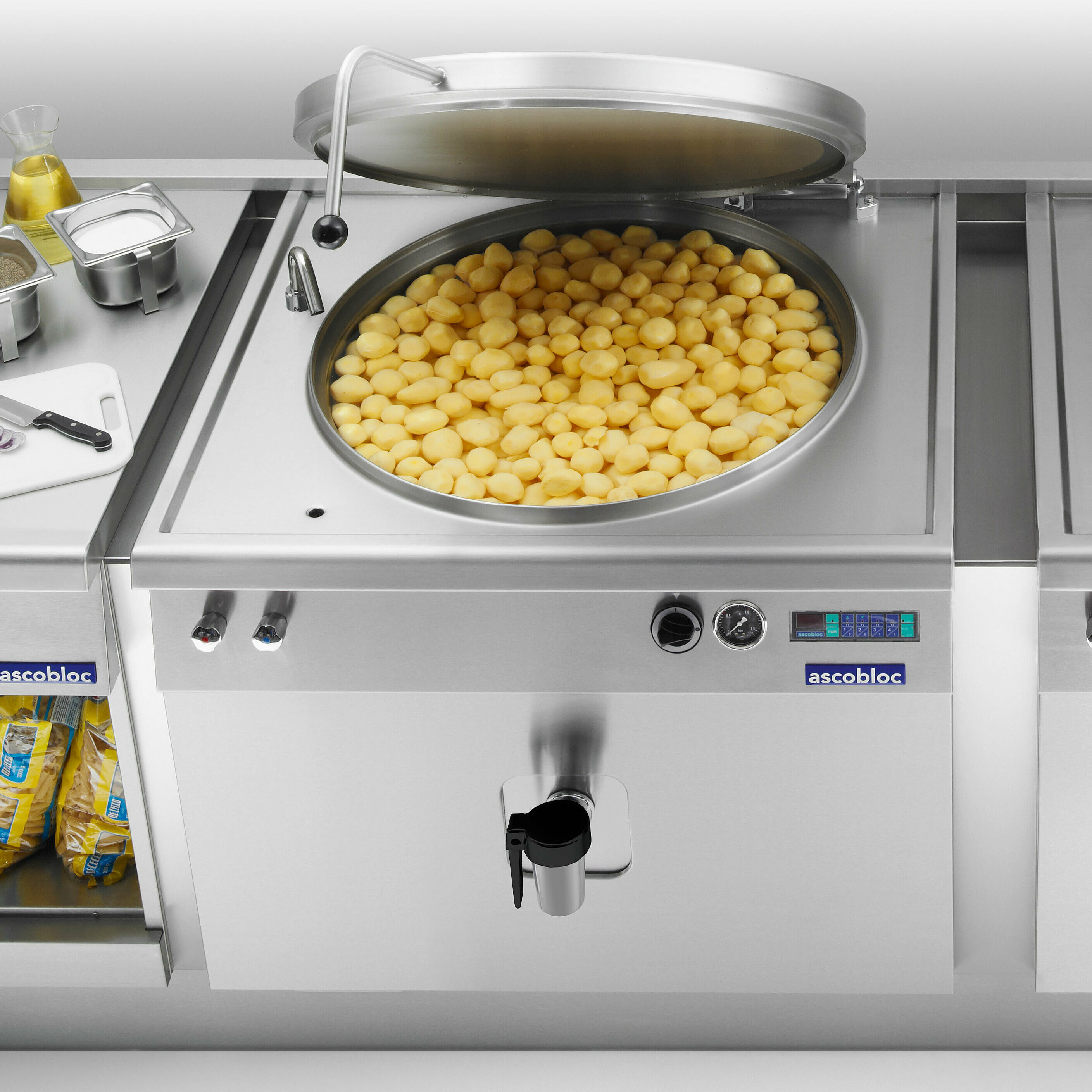

MES 150

Electric fast boiling pans with electronic control e.Cook

  • Basic execution as MES 060 and MES 080
  • e.Cook electronic control via touch panel behind glass screen
  • Electronic temperature control and automatic precooking with three control modes: temperature control, fixed power input in ten steps, cooking step setting (simmering, mildly boiling, briskly boiling)
  • Automatic water filling up to the desired filling quantity and adjustment of the mixing ratio hot/cold water
  • USB interface for HACCP data read out as pdf
  • Prepared for connection to performance optimization system (ABCD interface)



useful capacity64 l80 l100 l150 l
Boiler internal dimensionsØ 484 x 410 mmØ 584 x 416 mmØ 584 x 470 mmØ 697 x 470 mm
Free-standing applianceMES 060.210MES 080.210MES 100.210MES 150.210

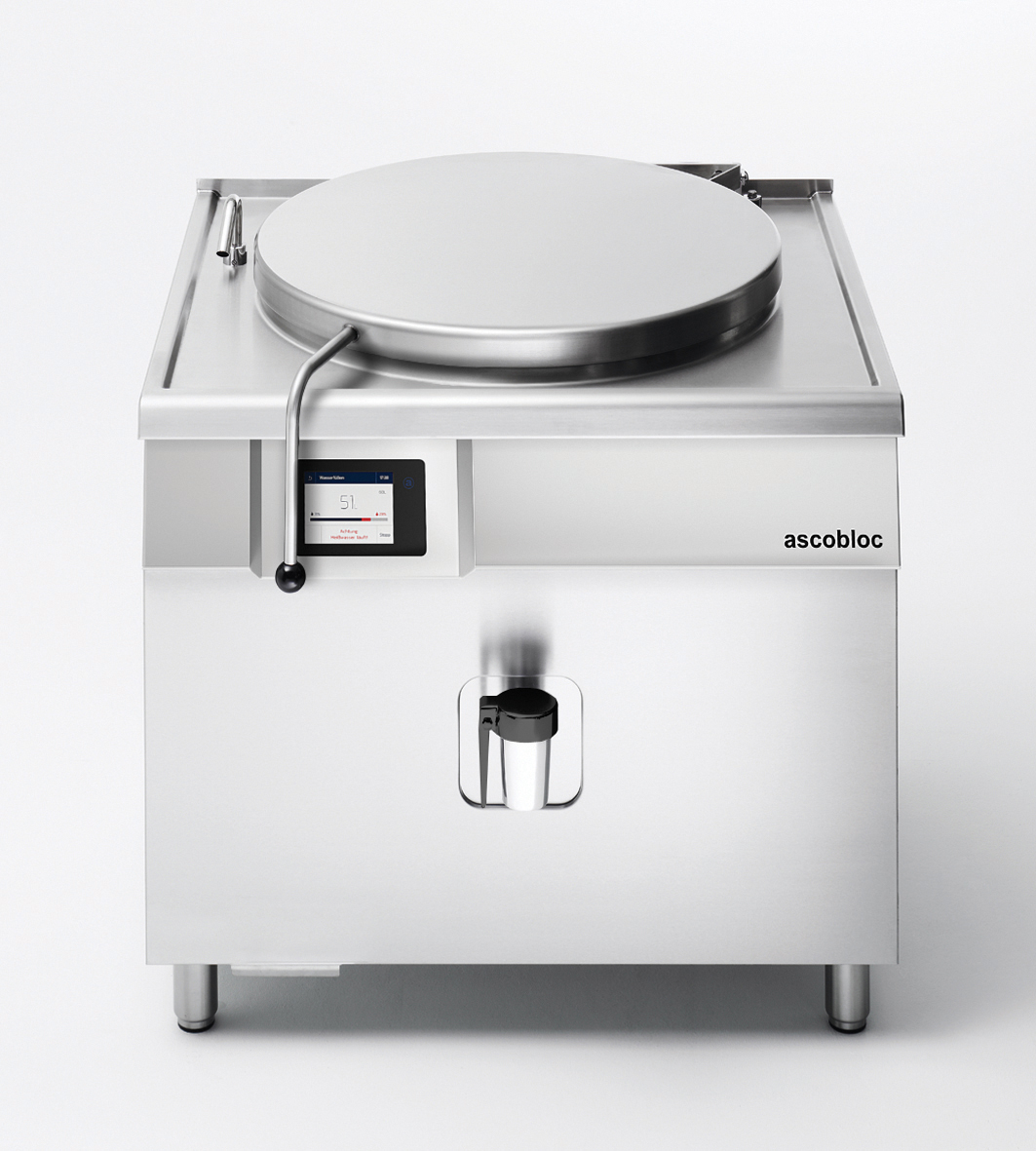

MES 150.210

Electric rectangular boiling pans

  • Indirectly heated, double jacket tank
  • Semi-closed maintenance-free heating system
  • Protection against boiling dry, built-in pressostat and safety valve
  • Lid of pan double walled and isolated
  • Drainage via safety valve DN 50
  • Robust, spring released and balanced stainless steel hinge
  • Water inlet through swivel tap
  • Pan bottom made of stainless steel DN 1.4571 (AISI 316 Ti)
  • Top plate with recess and drainage hole
  • Option: electronic control via membrane keypad (soon also with e.Cook control)



useful capacity150 l250 l300 l
Boiler internal dimensions600 x 656 x   450 mm990 x 656 x   450 mm1200 x 656 x   450 mm
Free-standing applianceMER 150MER 250MER 300
MER 250
