Frying & grilling appliances

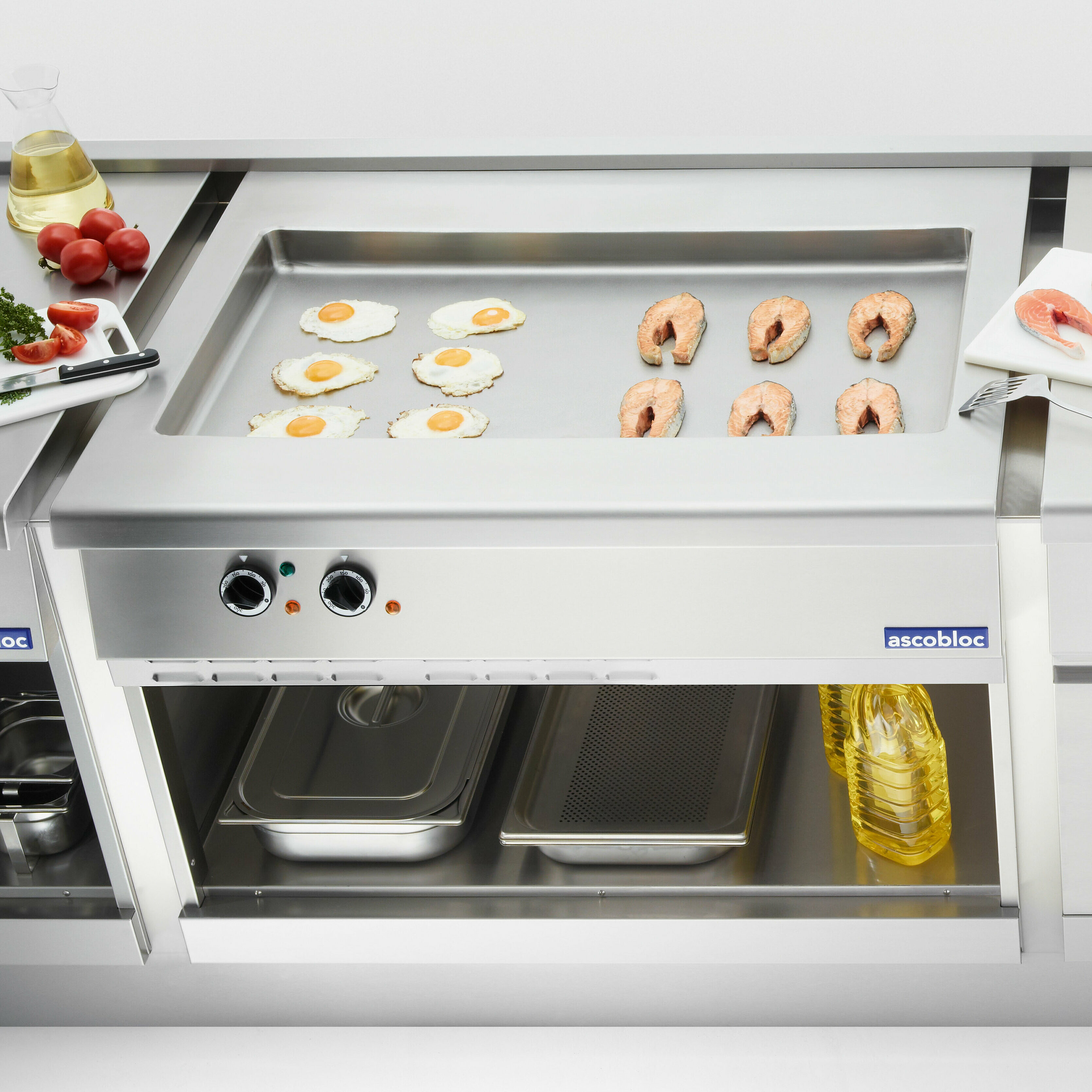

Electric frying plates with compense bottom
- 65 mm deep drawn basin made of chromium-nickel steel seamlessly welded into the top frame
- Frying surface made of composite metal (stainless-steel / copper) with two frying zones
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying surface with anti-sticking property
- Drainage via closable scrap outlet 2” in drip pan GN 1/1-65
- Indirect heating by radiant heaters
- Regulated by thermostat from 50 up to 260°C
| Number of frying zones | 2 | 2 |
| Dimensions of basin | 510 x 600 x 65 mm | 780 x 600 x 65 mm |
| Free-standing appliance | MEB 430 | MEB 630 |
Gas frying plates with compense bottom
- 65 mm deep drawn basin made of chromium-nickel steel seamlessly welded into the top frame
- Frying surface made of composite metal (stainless steel / copper)
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying surface with anti-sticking property
- Drainage via closeable scrap outlet 2” in drip pan GN 1/1-65
- Heating via multiple bar burner with automatic burner control unit, high-voltage ignition and ionized-flame control, thermostatically controlled from 50 – 260°C
- Electrical connection 0,5 kW, 1NPE AC 230V required
| number of frying zones | 1 | 2 |
| dimensions basin | 510 x 600 x 65 mm | 780 x 600 x 65 mm |
| Free-standing appliance | MGB 430 | MGB 630 |

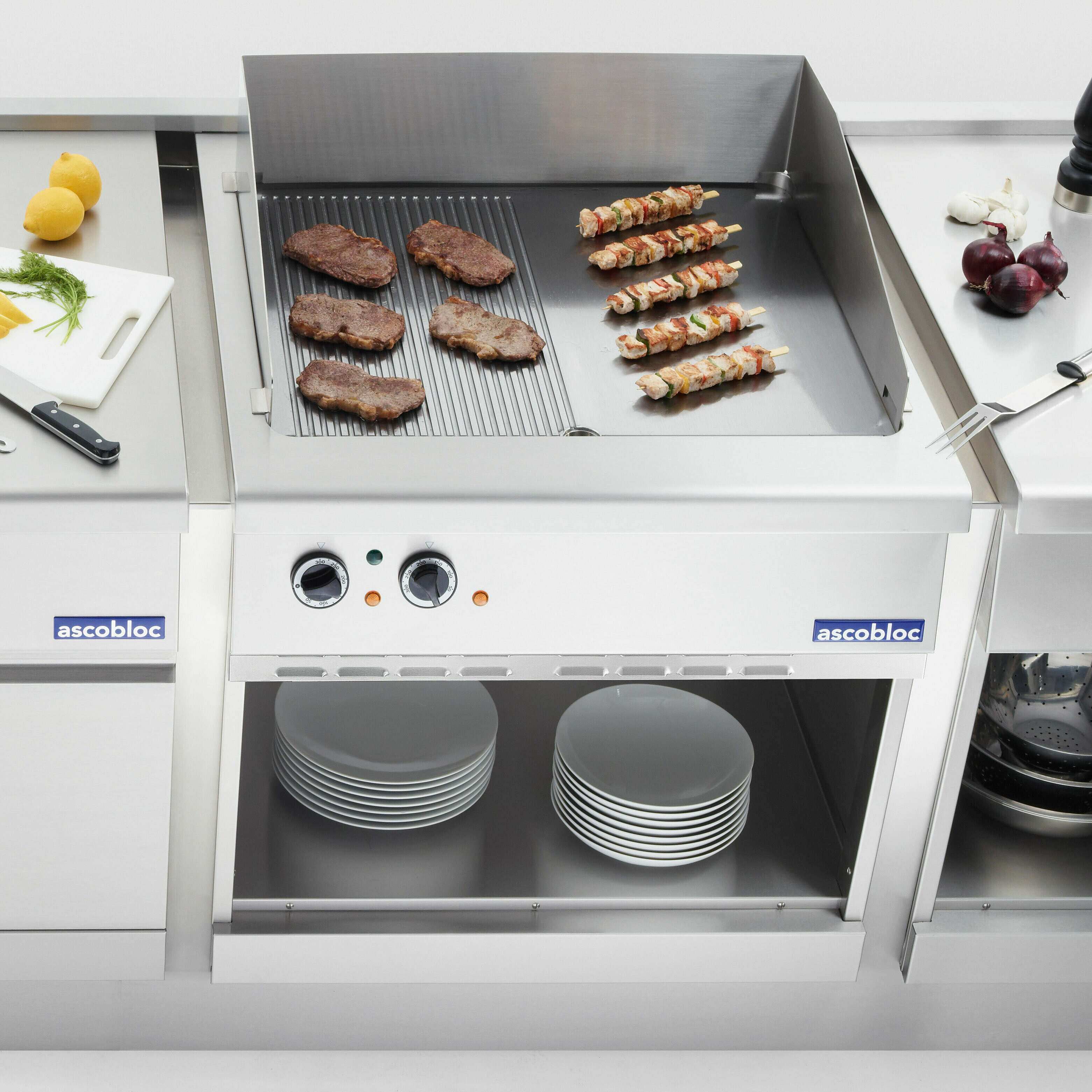

Electric griddle & grill plates with steel surfaces
- Frying plate made of heat resistant steel, optionally hard chrome plated
- Two different surfaces available: smooth and ribbed
- Each two frying zones are separately regulated by thermostat from 50 to 260°C
- Indirect heating by radiant heaters
- Drainage via closable scrap outlet 2” into drip pan GN 1/1-65
| Surface | ribbed | smooth | ribbed | ribbed / smooth | smooth |
| Number of frying zones | 2 | 2 | 2 | 2 | 2 |
| Dimensions of frying surface | 510 x 600 mm | 510 x 600 mm | 780 x 600 mm | 780 x 600 mm | 780 x 600 mm |
| Free-standing appliance | MEB 440 | MEB 460 | MEB 640 | MEB 650 | MEB 660 |
Gas griddle & grill plates with steel surfaces
- Frying plate made of heat resistant steel and with non-stick property
- Different surfaces available: ribbed, smooth, ribbed/smooth
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying zones are independently controlled by one capillary tube controller each from 50 - 260°C
- Drainage via closeable scrap outlet 2” in drip pan GN 1/1-65
- Heating via multiple bar burner with automatic burner control unit, high-voltage ignition and ionized-flame control, thermostatically controlled from 50 – 260°C
- Electrical connection 0,5 kW, 1NPE AC 230V required
| Surface | fluted | smooth | fluted | fluted / smooth | smooth |
| number of frying zones | 1 | 1 | 2 | 2 | 2 |
| Dimensions of frying surface | 510 x 600 mm | 510 x 600 mm | 780 x 600 mm | 780 x 600 mm | 780 x 600 mm |
| Free-standing appliance | MGB 440 | MGB 460 | MGB 640 | MGB 650 | MGB 660 |

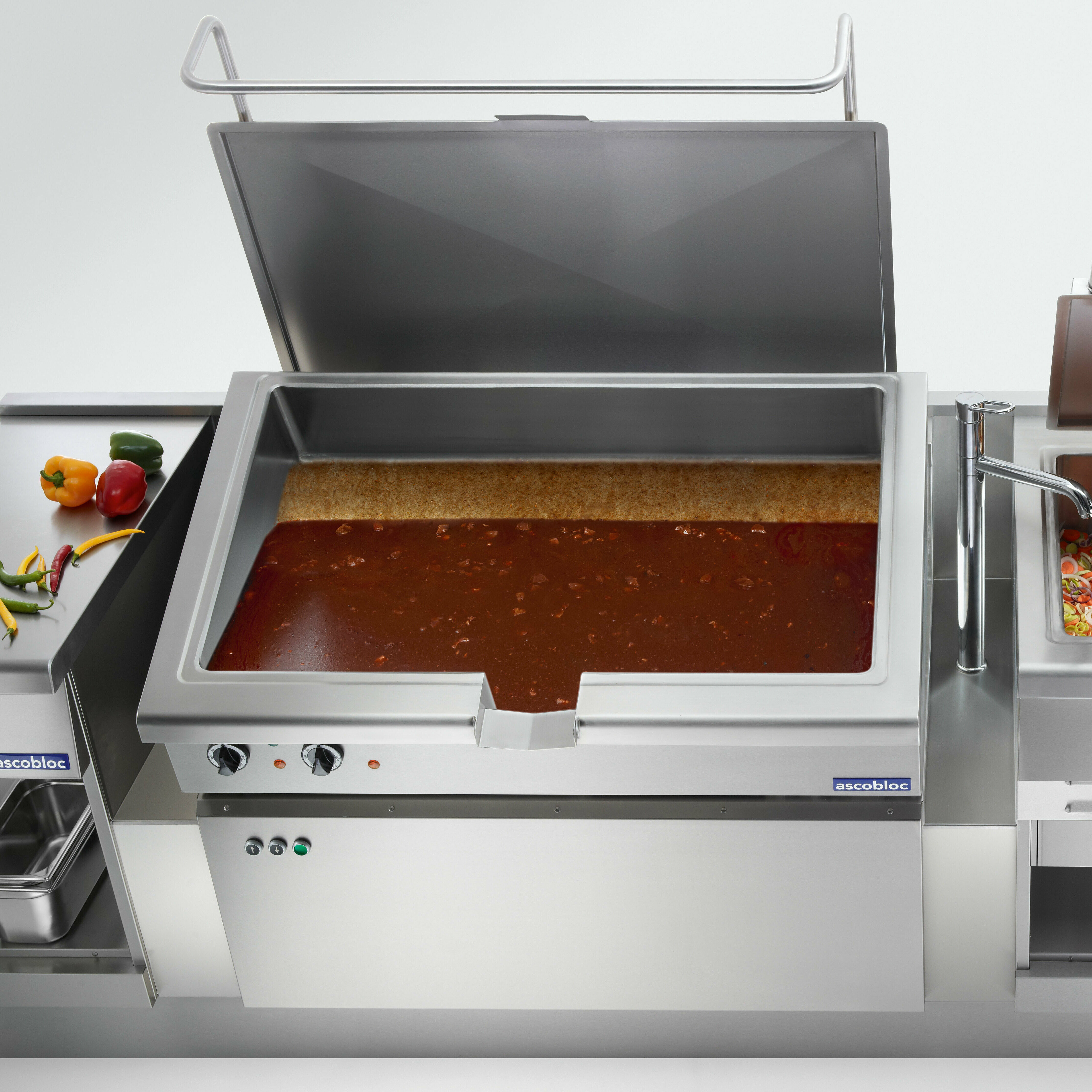

Electric tilting frying pans with compense bottom
- Space saving product design without lateral suspension
- Pan with seamlessly welded basin made of chromium-nickel-steel (190 mm deep)
- Spout almost remaining on same position thanks to rotating axis in front of pan
- Bottom of pan made of composite metal (stainless-steel / copper) with two frying zones
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Two frying zones with separate thermostatic control from 50 - 260°C
- Frying surface with anti-sticking property
- Tilting by linear-driven motor (automatic cut-off when closing lid)
- Protection against overheating as 2nd safety device according to VDE/IEC
- Switching off the heating in case of tipping
- Double-walled lid with stainless steel hinge
- Optional: Pre rinse spray unit in the left pedestal for easy and hygienic cleaning
| Number of frying zones | 2 | 2 |
| Dimensions of basin | 780 x 600 x 190 mm | 1050 x 600 x 190 mm |
| Total / usable volume | 64 l / 45 l | 86 l / 61 l |
| Free-standing appliance | MEP 600 | MEP 700 |
Gas tilting frying pans with compense bottom
- Space saving product design without lateral suspension
- Pan with seamlessly welded basin made of chromium-nickel-steel (190 mm deep)
- Spout almost remaining on same position thanks to rotating axis in front of pan
- Bottom of pan made of composite metal (stainless-steel / copper) with two frying zones
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Frying zones are independently controlled by one capillary tube controller each from 50 - 260°C
- Frying surface with anti-sticking property
- Electromotive tilt with limit switches and motor cut-off when the lid is closed
- Heating via multiple bar burner with automatic burner control unit, high-voltage ignition and ionized-flame control, thermostatically controlled from 50 – 260°C
- Automatic shutdown of the burners in case of tilting
- Double-walled lid with stainless-steel hinge
- Electrical connection 0,5 kW, 1NPE AC 230V required
- Optional: Pre rinse spray unit in the left pedestal for easy and hygienic cleaning
| Number of frying zones | 2 | 2 |
| dimensions of basin | 780 x 600 x 190 mm | 1050 x 600 x 190 mm |
| Total / useful capacity | 64 l / 45 l | 86 l / 61 l |
| Free-standing appliance | MGP 600 | MGP 700 |
Electric frying pans with compense bottom and knob control
- Pan with seamlessly welded basin made of chromium-nickel steel
- Bottom of pan made of composite metal (stainless-steel / copper)
- Drainage via ball valve 2“ downwards and PTFE-plug
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Protection against overheating as 2nd safety device according to VDE/IEC
- Frying surface with anti-sticking property with two frying zones
- Double-walled lid with stainless steel-swivel joints
- Heating via radiant heater with continuous regulation of 50 – 260°C
- Option: Pre rinse spray unit in the left pedestal for easy and hygienic cleaning
| Number of frying zones | 2 | 2 |
| Basin dimensions | 780 x 600 x 190 mm | 1050 x 600 x 190 mm |
| Total / useful capacity | 87 l / 68 l | 118 l / 93 l |
| Free-standing appliance | MEP 650 | MEP 750 |
Electric frying pans with compense bottom and electronic control e.Cook
- Basic execution as MEP 650 and MEP 750
- With water filling device
- e.Cook electronic control via touch panel behind glass screen
- Electronic temperature control, each frying zone separately adjustable
- Automatic preheating up to the target temperature
- Automatic water filling up to the desired filling quantity and adjustment of the mixing ratio hot/cold water
- Storage of up to 100 recipes possible
- USB interface for HACCP data read out as pdf
- Prepared for connection to performance optimization system (ABCD interface)
| Number of frying zones | 2 | 2 |
| Basin dimensions | 780 x 600 x 190 mm | 1050 x 600 x 190 mm |
| Total / useful capacity | 87 l / 68 l | 118 l / 93 l |
| Free-standing appliance | MEP 650.210 | MEP 750.210 |
Gas-frying pans with compense bottom and knob control
- Pan with seamlessly welded basin made of chromium-nickel steel
- Bottom of pan made of composite metal (stainless-steel / copper)
- Drainage via ball valve 2“ downwards and PTFE-plug
- Rapid heat up, high thermal conductivity, perfect heat distribution
- Protection against overheating as 2nd safety device according to VDE/IEC
- Frying surface with anti-sticking property with two frying zones
- Double-walled lid with stainless steel-swivel joints
- Heating via multiple bar burner with automatic burner control unit, high-voltage ignition and ionized-flame control, thermostatically controlled from 50 – 260°C
- Electrical connection 0,5 kW, 1NPE AC 230V required
- Option: Pre rinse spray unit in the left pedestal for easy and hygienic cleaning
| Number of frying zones | 2 | 2 |
| Dimensions of basin | 780 x 600 x 190 mm | 1050 x 600 x 190 mm |
| Total / usable capacity | 87 l / 68 l | 118 l / 93 l |
| Free-standing appliance | MGP 650 | MGP 750 |
